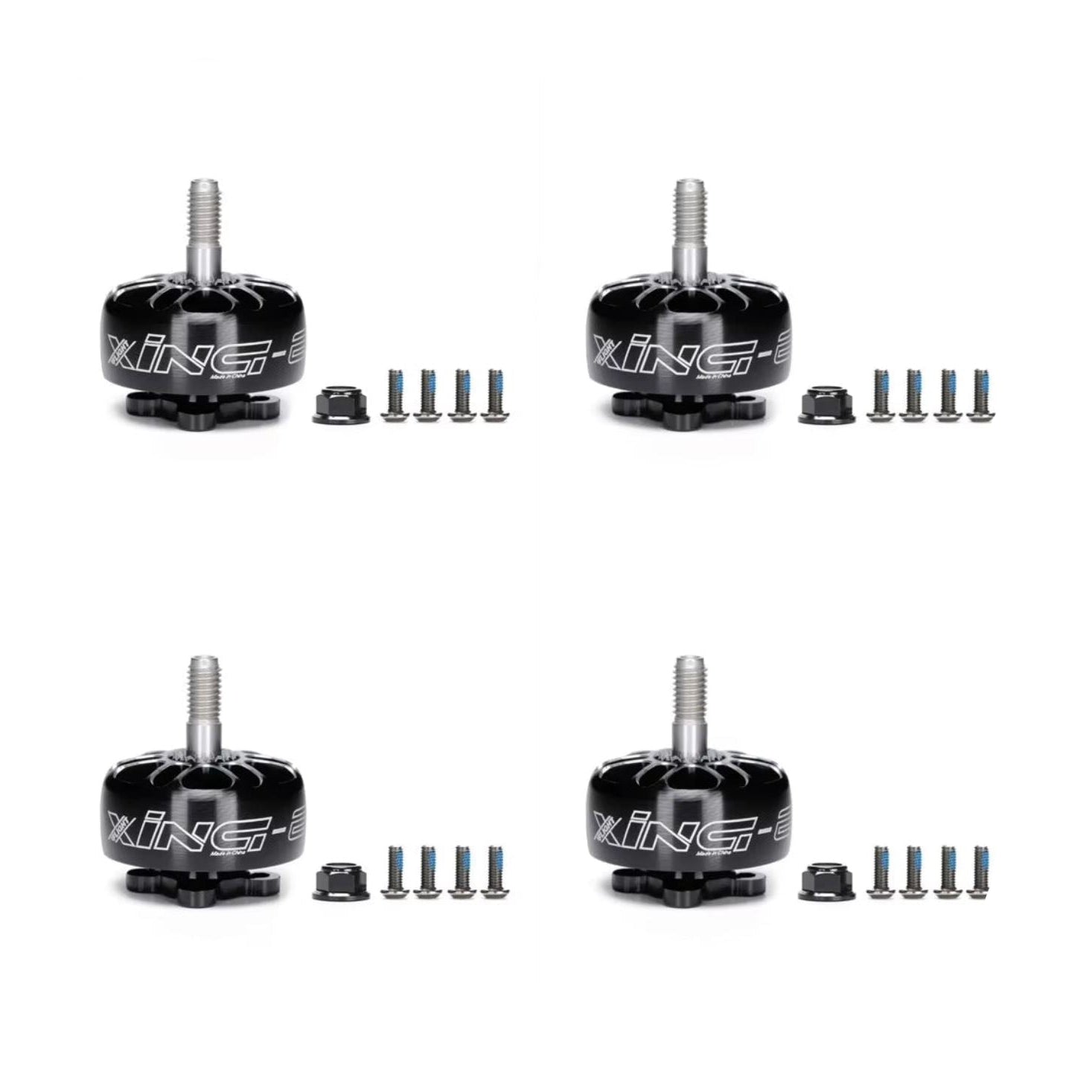

IFLIGHT XING E Pro Brushless Motor

• XING-E series are very strong and powerful FPV motors for FPV racing, great value choice with well known XING performance.focuses on quality, the XING-E series affordable motors that are strong and durable.

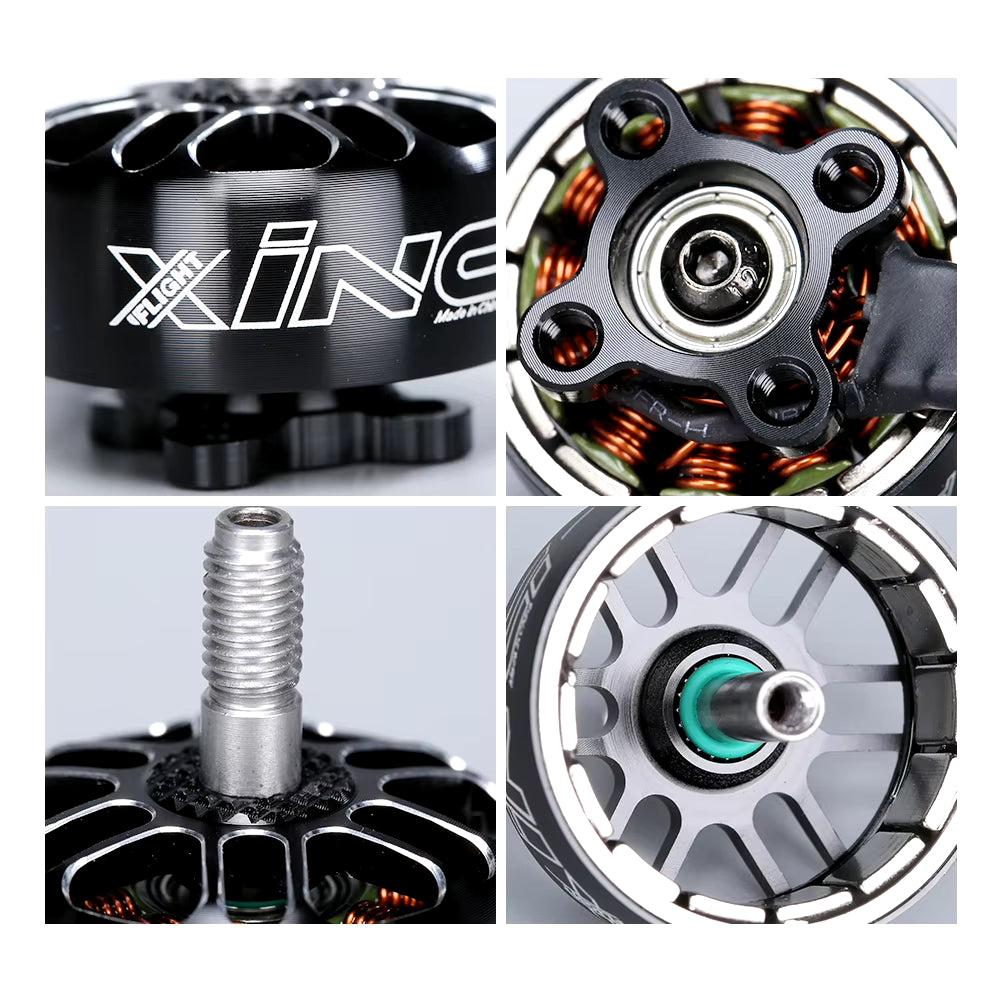

• This 2207 sized motor features a High-strength 4mm steel hollow shaft, Single strand windings for performance, M3 shaft screw, and larger 9x4x4mm NSK bearings.
• High-strength 4mm Steel shaft
• N52H High-temperature magnets, NSK bearings
• 16x16mm hole pattern
• Single strand copper winding
• Hex bolt shaft set screw

SPECIFICATIONS

• Brand Name: IFlight

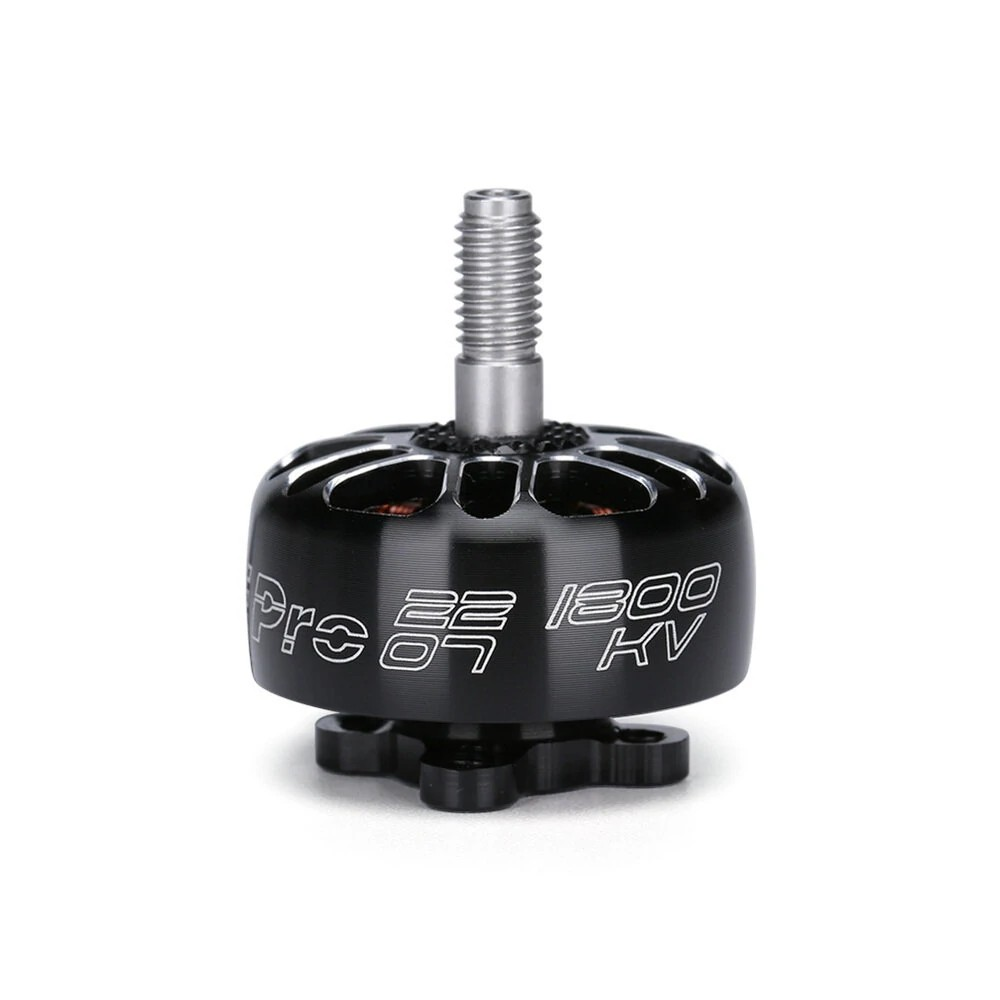

• Model: XING-E Pro 2207
• Item Name: 2207 1800KV 2450KV 2750KV Brushless Motor
• KV: 1800KV / 2450KV / 2750KV (Optional)
• Version: CW Screw Thread
• Input Voltage: 3-6S @ 1800KV / 2-4S @ 2450KV / 2750KV
• Configuration: 12N14P
• Stator Diameter: 22mm
• Stator Length: 7mm
• Shaft Diameter: 5mm
• Motor Dimension: 28.5 X 19.7mm (D X L)
• Weight: 33.8g
• Idle Current(10) @10V: Less than 1.2A (1800KV);
• less than 2.0A(2450KV): Less than 2.2A (2750KV)
• Max Con Power (180S): 845.3W@1800KV; 682.1W@2450KV; 800.5W@2750KV
• Internal Resistance: 81.5mΩ@1800KV; 46.8mΩ@2450KV ; 41mΩ@2750KV
• Max Current (180S): 35.22A@1800KV; 42.63A@2450KV
