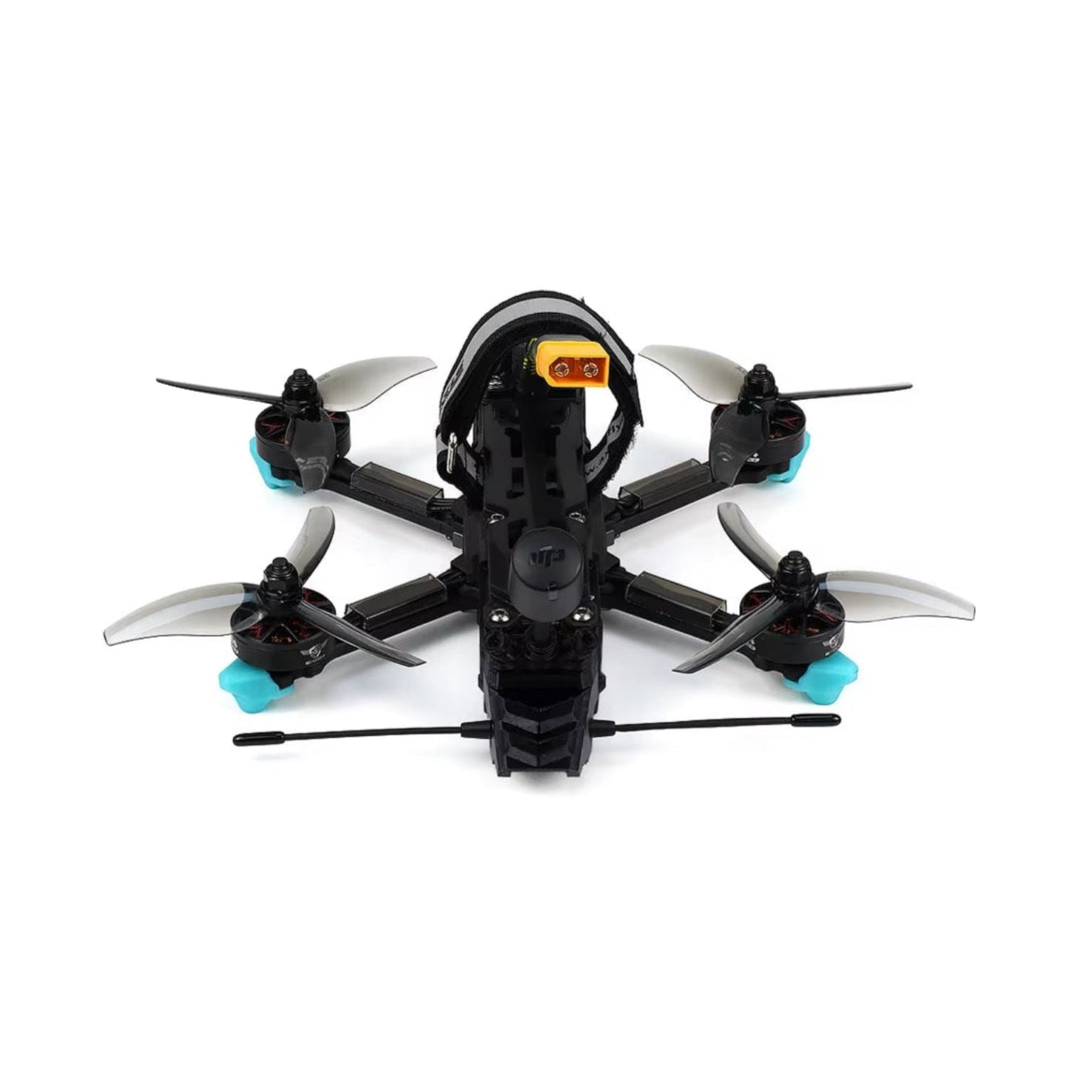

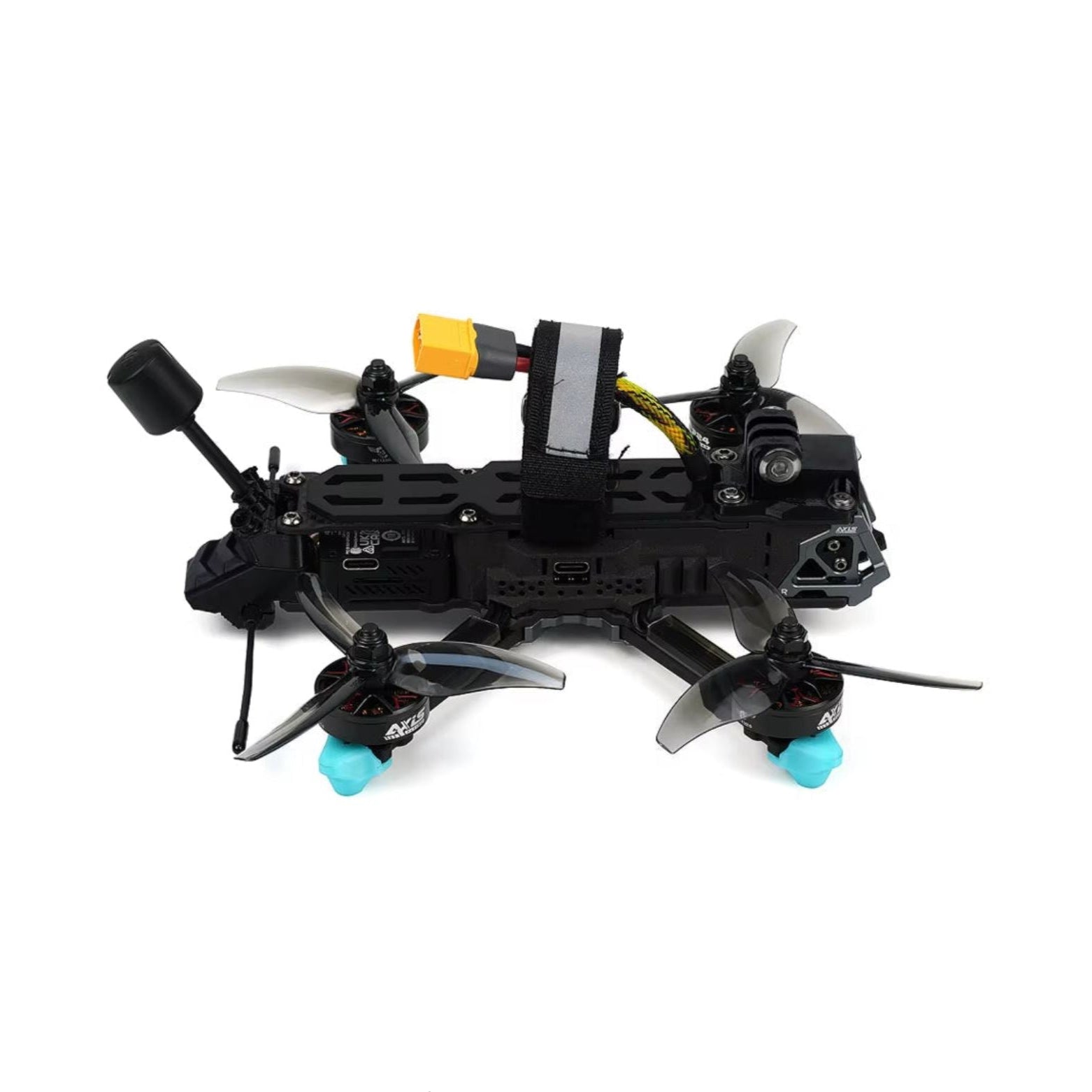

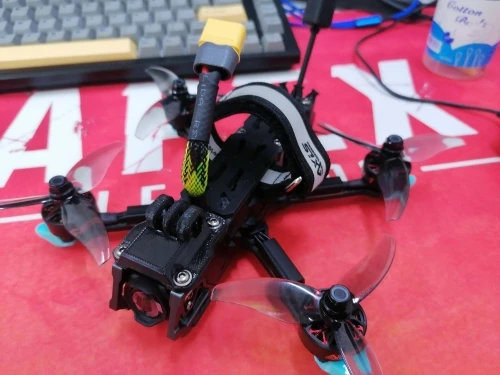

AxisFlying Manta 3.6" GPS FPV Drone

Axisflying MANTA 3.6" Lite Freestyle Frame

The Axisflying MANTA 3.6" Lite is the result of meticulous attention to user experience and years of feedback-driven design refinement. In the freestyle and cinematic drone arena, Axisflying has taken user insights and turned them into a uniquely innovative frame that combines high-performance CNC aluminum components with premium T700 carbon fiber plates. The result is a durable, high-quality freestyle frame that delivers exceptional flight dynamics and versatility.

Key Features

Optimized for Freestyle & Cinematic

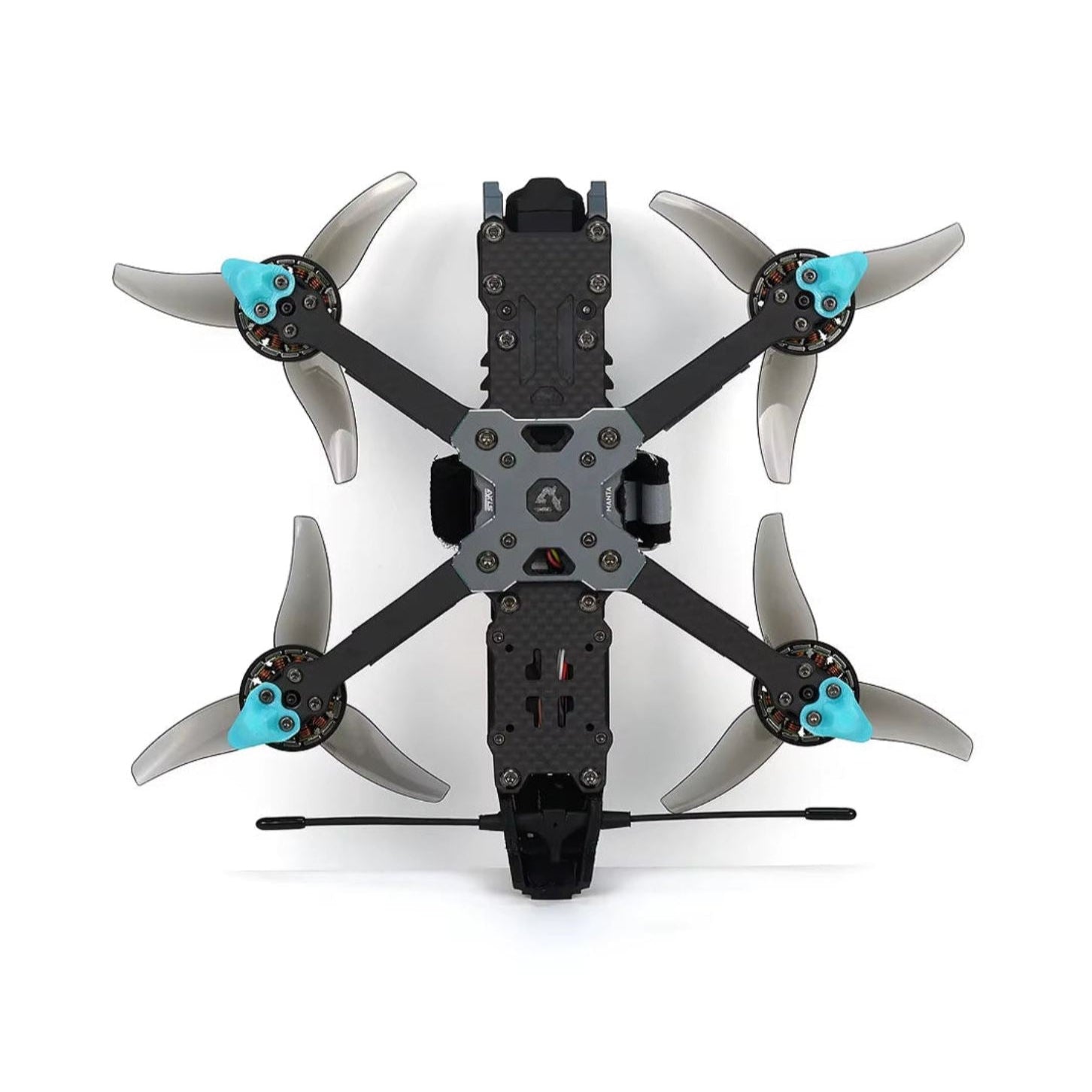

• Squashed X Design: Tailored for 3.6-inch freestyle and cinematic flying, the Squashed X configuration provides high maneuverability and a smooth flight experience. The design ensures props remain out of view from the FPV camera, making it ideal for freestyle enthusiasts.

High-Strength Build

• CNC Aluminum & Carbon Fiber Fusion: Innovative CNC aluminum structural components paired with T700 high-strength carbon plates ensure maximum durability and stability, even under demanding conditions.
• Nylon-Sintered Side Plates: Protects core electronics while allowing efficient heat dissipation for optimal performance.

Advanced Electronics Compatibility

• Flystack Integration: Equipped with Axisflying’s Argus Mini FC and ESC, featuring the BZ121 compass and MPU6000 gyroscope for precision performance.
• Versatile VTX & Camera Support: Compatible with leading systems such as DJI O3, Analog, Walksnail, and Link, giving users the freedom to customize.

Exceptional Performance

• Rapid Acceleration: Accelerates from 0 to 100kph in just 0.3 seconds under no-load conditions.
• Extended Flight Time: Over 8 minutes of flight time, even when carrying a GoPro10, with a top speed of 180kph.
• Custom Propellers: Specially designed 3.6-inch props available in green and gray for added performance and style.

User-Centric Design

• Adjustable Center of Gravity: Power cables can exit from the front or rear, allowing pilots to fine-tune the drone’s balance.
• Dual Antenna Support: Ensures improved signal reliability and flexibility.

Specifications

• Name: MANTA 3.6" Lite
• Structure: Squashed X
• Wheelbase: 162mm
• Arm Thickness: 4mm
• Bottom Plate Thickness: 3mm
• Top Plate Thickness: 2mm
• Lens Space: 14-20mm
• Stack Mounting: 20mm (M2) & 30.5mm (M3)
• VTX Mounting: 20mm & 25.5mm (M2)
• Prop Size: Max 3.6 inches
• Carbon Material: T700
• Motor Mounting: 12x12mm (M2)
• Bottom-to-Top Distance: 20mm
• Weight: 108g ±5g

Recommended Configuration

• Motor: Axisflying C206 2750KV
• Battery: 1100mAh 6S LiPo
• Fly Stack: Axisflying Argus Mini 35A + F7
• Propellers: Gemfan 3630
• VTX: Analog 2.5W or DJI O3
• Receiver Options:
  • TBS Receiver: 915MHz
  • ELRS Receiver: Axisflying ELRS 2.4GHz

Why Choose the Axisflying MANTA 3.6"?

With its cutting-edge materials, advanced design, and focus on performance, the MANTA 3.6" Lite is the ultimate frame for freestyle and cinematic pilots. Whether you’re seeking high maneuverability for freestyle stunts or smooth stability for cinematic shots, this frame delivers unparalleled performance and reliability.
