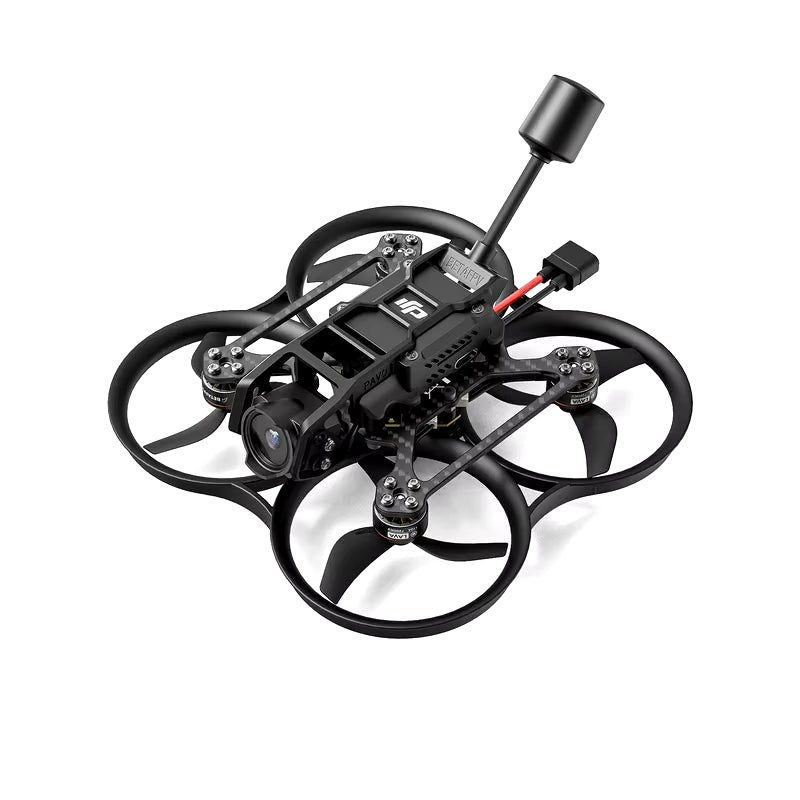

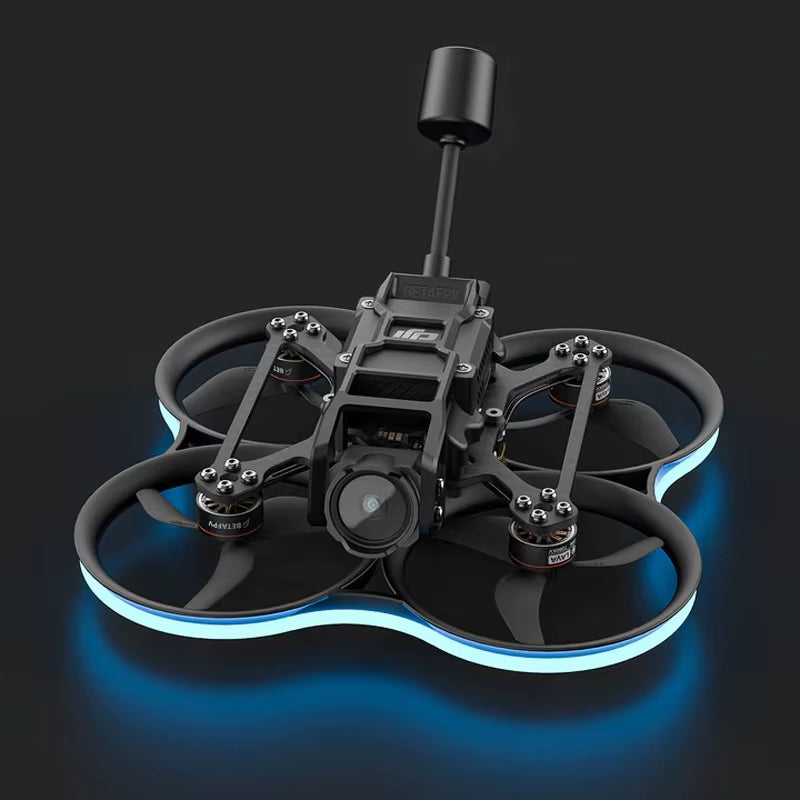

The Pavo20 Pro is a high-performance 2.2” DJI O3 Cinewhoop designed for freestyle and cinematic shooting, weighing under 150g. Perfectly engineered for smooth and responsive aerial footage, this drone features a specially crafted frame, powerful propulsion system, and a range of cutting-edge features designed to elevate your FPV experience.
Key Features:
-
Compact and Powerful: The Pavo20 Pro is an ideal pocket-size option for pilots looking to enter the world of FPV flying with DJI technology. It offers maximum thrust with its LAVA Series 1104 | 7200KV Brushless Motors and Gemfan 2218 3-Blade Propellers co-developed with Gemfan.
-
Enhanced Thrust & Flight Time: Its aerodynamic frame boosts thrust by 8-11%, while the LAVA 3S 550mAh 75C Battery delivers up to 6 minutes and 40 seconds of flight time. The frame’s optimized design ensures an incredible freestyle performance.
-

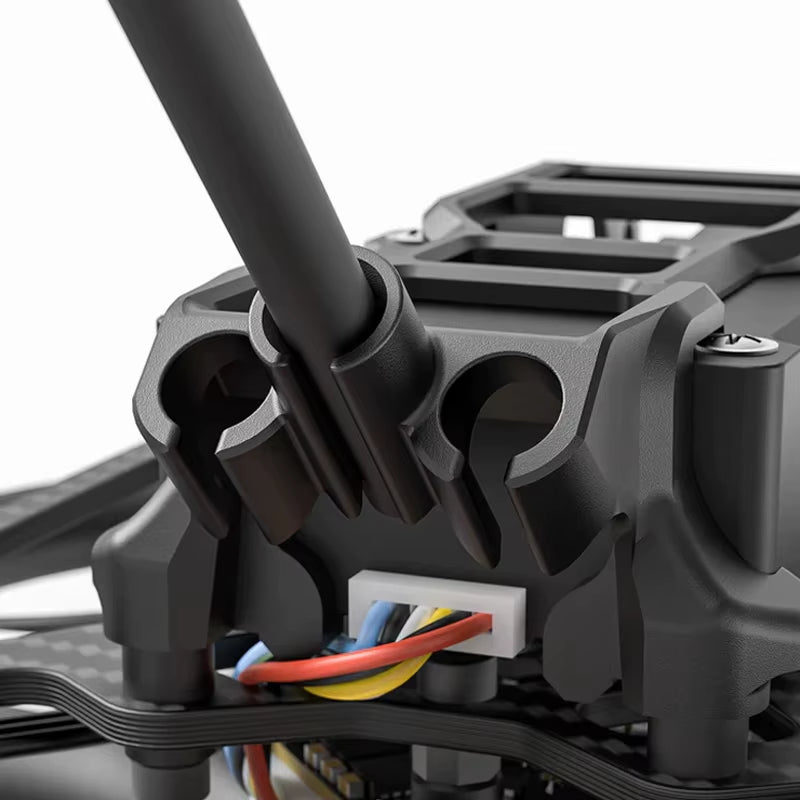

Optimized for Cinematic Quality: Equipped with 2 camera mounting holes for DJI O3 camera, the Pavo20 Pro allows for wide-angle shooting, ensuring a high-quality aerial experience. The Pavo Series Classic Rubber Damper Design ensures smooth, jello-free footage, while the enhanced antenna holder boosts signal stability.
-
Improved Frame Design: The Pavo20 Pro Frame Kit includes a PA12 thickened whoop duct, which not only ensures durability but also improves thrust by 8-11% compared to a non-ducted setup. The battery strap slot accommodates 3S batteries and provides improved stability during flight.
-
HD Digital VTX Support: The drone supports DJI O3 Air Unit, Caddx Vista Kit, and RunCam Link HD digital VTX systems, with an optimized HD VTX mounting bracket for easy DIY installation. The DJI O3 Air Unit offers up to 1080P resolution with dual-band transmission for superior signal stability.
-
Flight Controller: The F4 2-3S 20A AIO FC V1 weighs just 5.92g and is designed for HD digital VTX, offering enhanced computing power, fast response speed, and stable flight for freestyle pilots.
Receiver Options: The Pavo20 Pro is available in five configurations to suit your needs:
- Analog with TBS Receiver
- Analog with ELRS Receiver
- DJI O3 with TBS Receiver
- DJI O3 with ELRS Receiver
- DJI O3 without Receiver
Specifications:
-
Wheelbase: 93.7mm
-

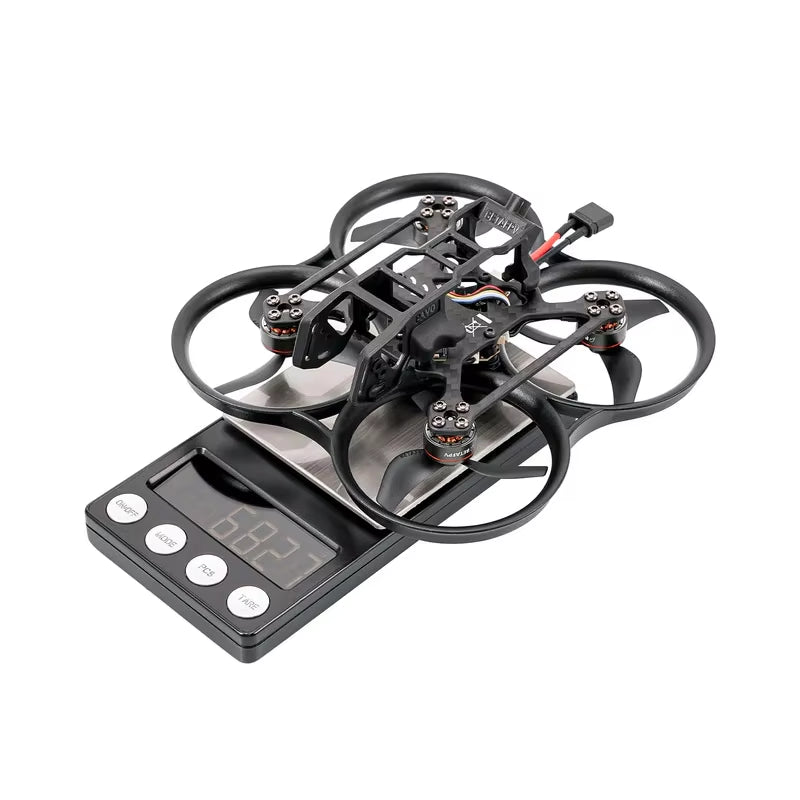

Weight (without Battery, Air Unit): 66.3g
-
Frame Material: PA12 with reinforced cross-section for added durability
-
Support VTX: DJI O3 Air Unit, Caddx Vista Kit, RunCam Link
-
Camera Compatibility: DJI O3 Cam, Caddx, and RunCam Series (19mm/20mm)
-
Battery Connector: XT30
-
Battery Slot: 20mm (height is adjustable)
-
Recommended Batteries: LAVA 3S 450mAh 75C, 550mAh 75C, 650mAh 3S
-
FC: F4 2-3S 20A AIO FC V1
-
Motor: LAVA Series 1104 | 7200KV Brushless Motors
-
Propellers: Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
-
Flight Time: Up to 6 minutes 40 seconds (with LAVA 3S 550mAh Battery)
-
RX Version: ELRS, TBS
HD Digital VTX System:
The Pavo20 Pro is designed to work with the DJI O3 Air Unit (1080P), Caddx Vista Kit (720P), and RunCam Link for superior HD image quality. The customized HD VTX mounting bracket features an easy-to-install split design, allowing DIY pilots to make the most of their VTX options.
Propulsion System:
With a unique freestyle propulsion system co-developed with Gemfan, the LAVA 1104 | 7200KV Brushless Motors and Gemfan 2218 3-Blade Propellers ensure maximum thrust for agile and smooth flight performance. The combination of aerodynamics and the LAVA 3S 550mAh 75C Battery enables excellent flight times and superior responsiveness.
Frame Kit:
Constructed with a PA12 crash-proof whoop duct, the frame boosts thrust by 8-11%, providing more power and stability. The open-ended battery strap slot fits a variety of 3S batteries while ensuring consistent stability during intense flights.

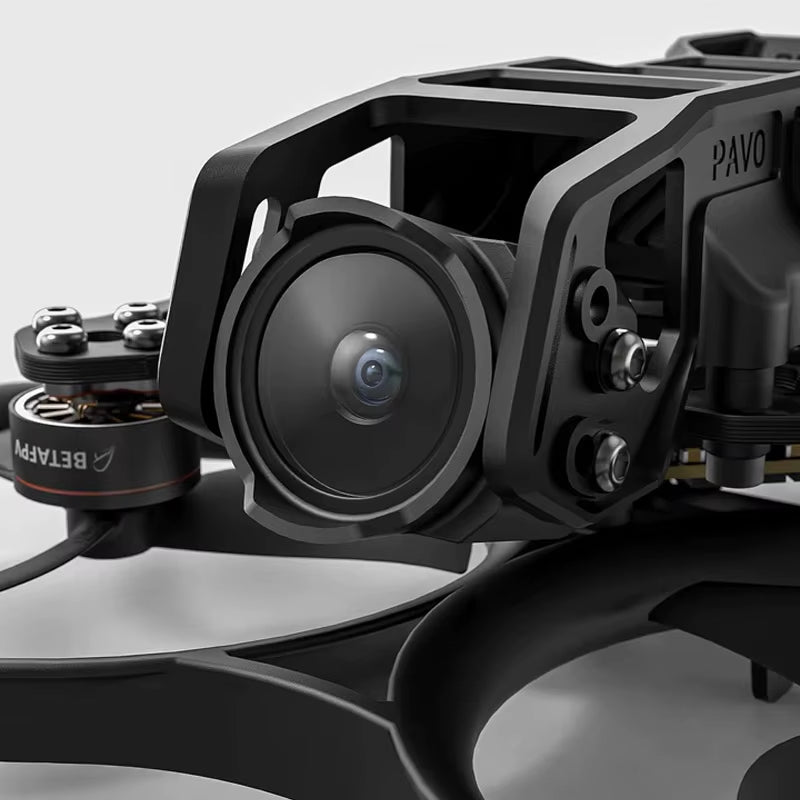

Camera Mounting and Design:
The frame supports up to 6 fixed camera holes, including 2 new ones designed for wide-angle mode shooting. This setup eliminates side panel shadows for a clean, expansive FPV view. The design also allows for easy vertical installation of ND filters, while the Pavo Series Rubber Damper eliminates jello, ensuring stable, cinematic-quality footage.

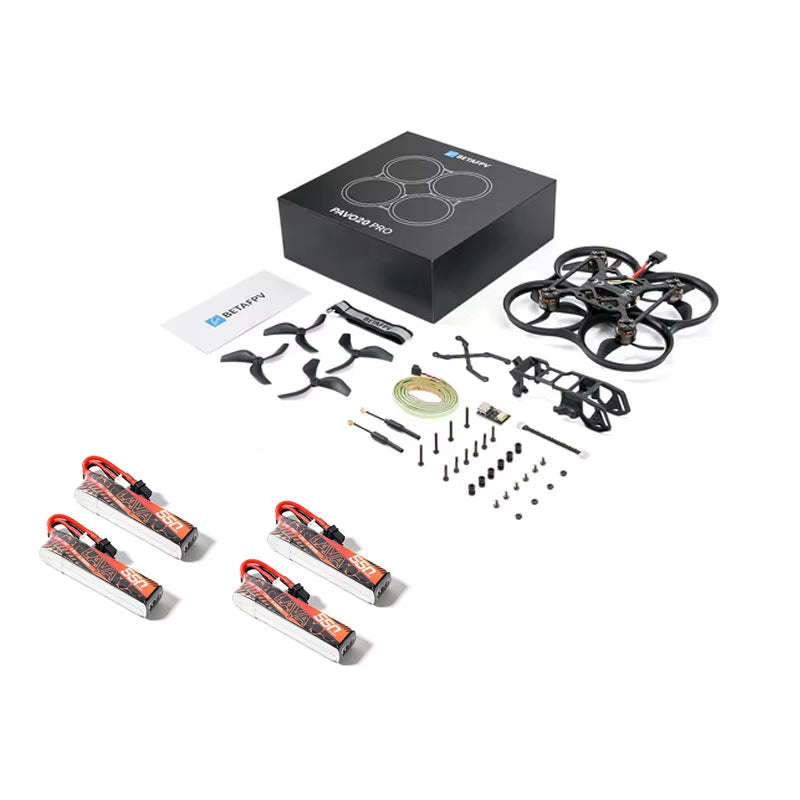

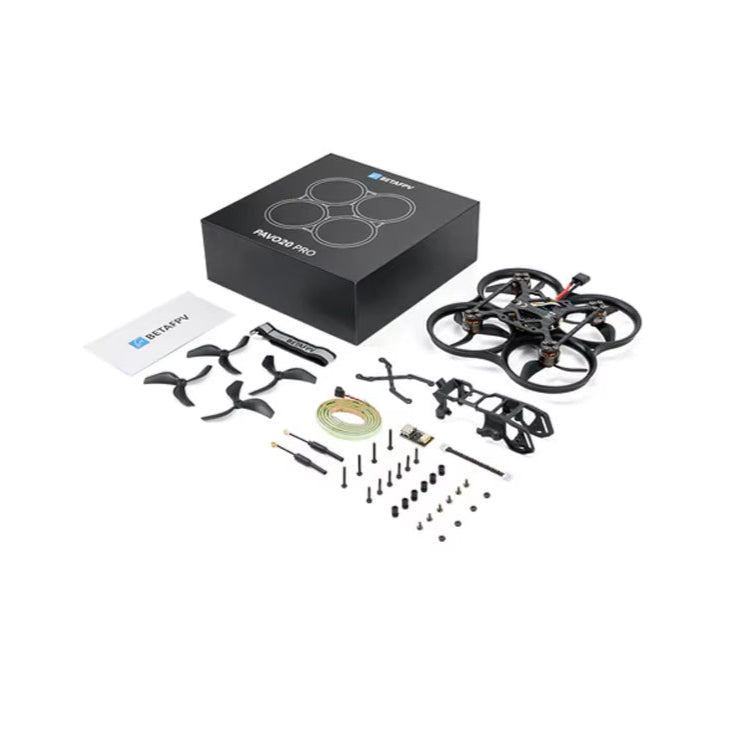

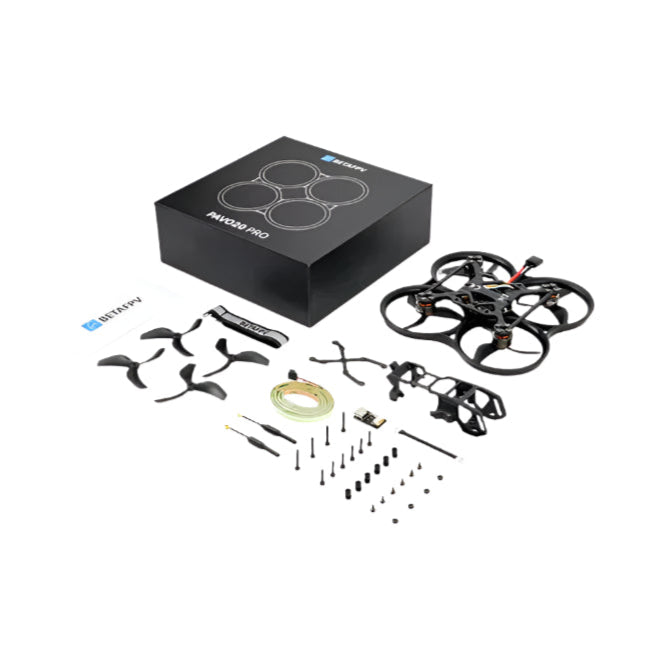

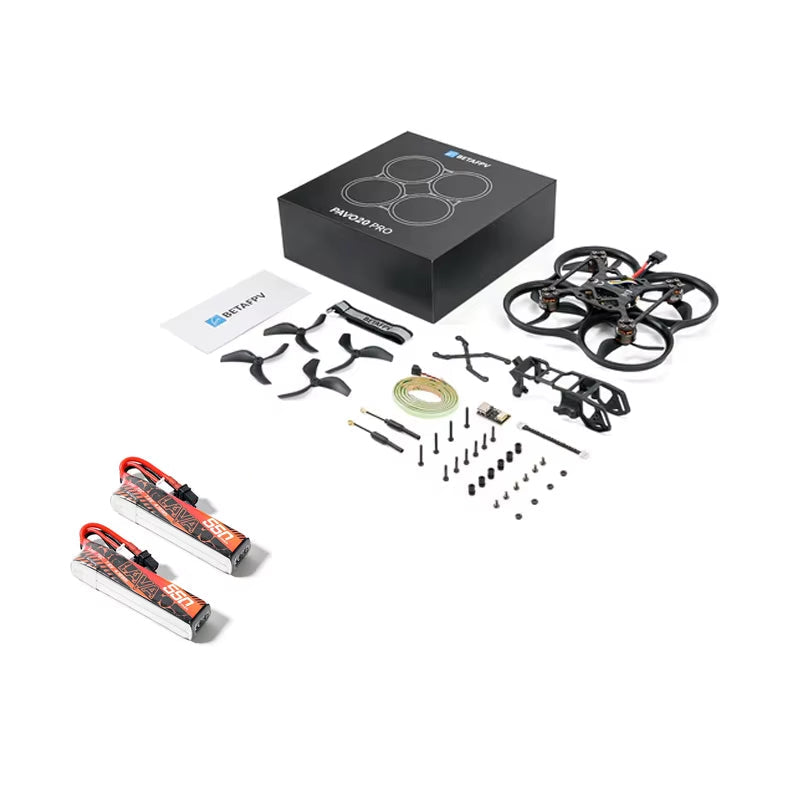

Included Parts:

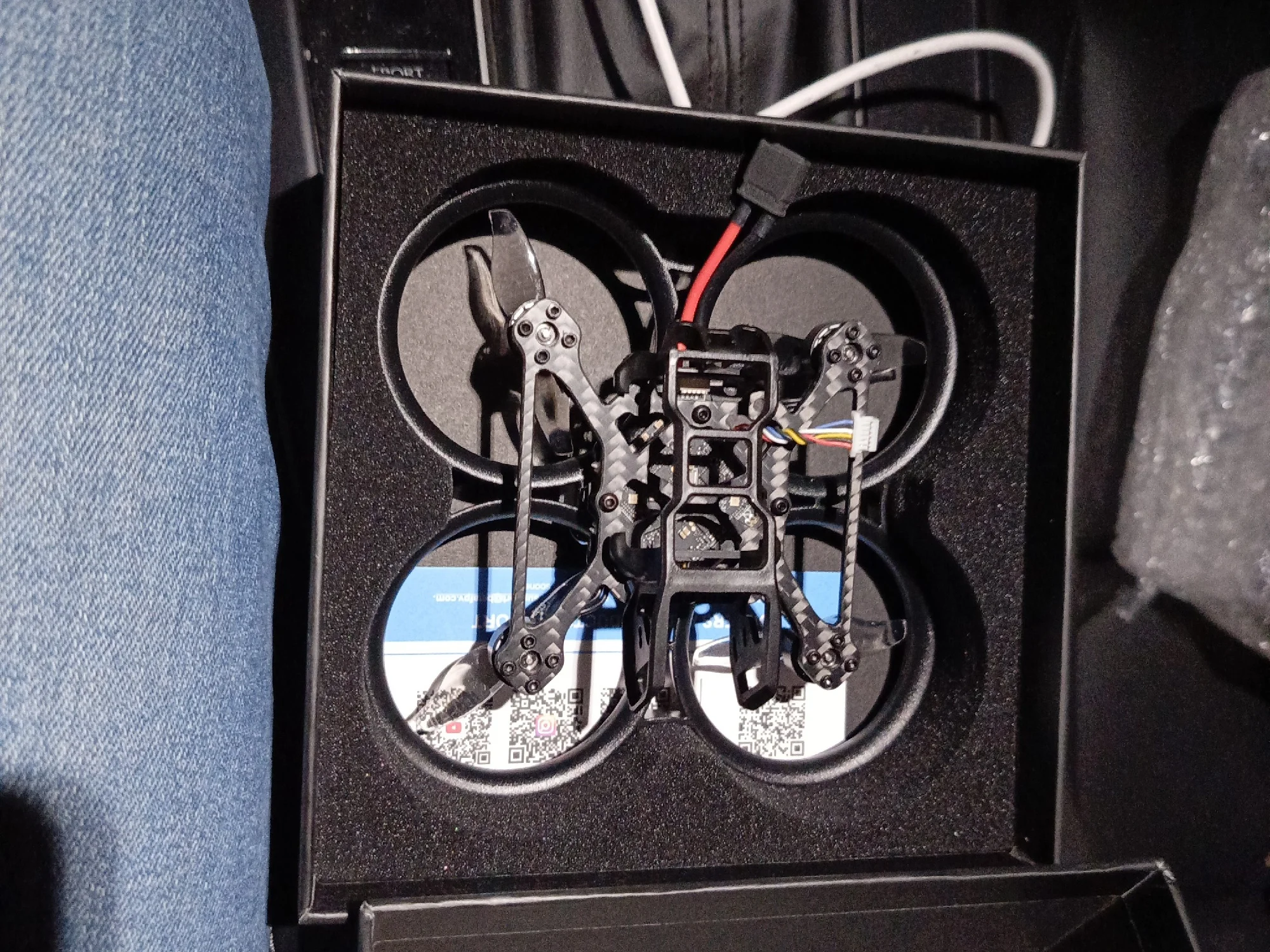

- 1 X Pavo20 Pro Brushless Whoop Quadcopter
- 1 X Pavo20 Pro HD VTX Bracket
- 1 X HD VTX Bracket Screw Package
- 1 X Pavo Series COB LED Strip (Ice Blue)
- 4 X Gemfan 2218 3-Blade Propellers (1.5mm Shaft)
- 1 X PCBA | Type-C Adapter Board
- 1 X 4Pin Adapter Cable
Important:
The Pavo20 Pro does not include a Battery, DJI O3 Air Unit, Caddx Vista Kit, or RunCam Link HD Digital VTX in any package. These components must be purchased separately.
