BOYA BY-V Professional Wireless Lavalier Mini Microphone

BY-V - Is a mini 2.4Ghz wireless microphone system that provides high quality sound for live streaming , vlogging, course recording, and other audio capturing app lications.

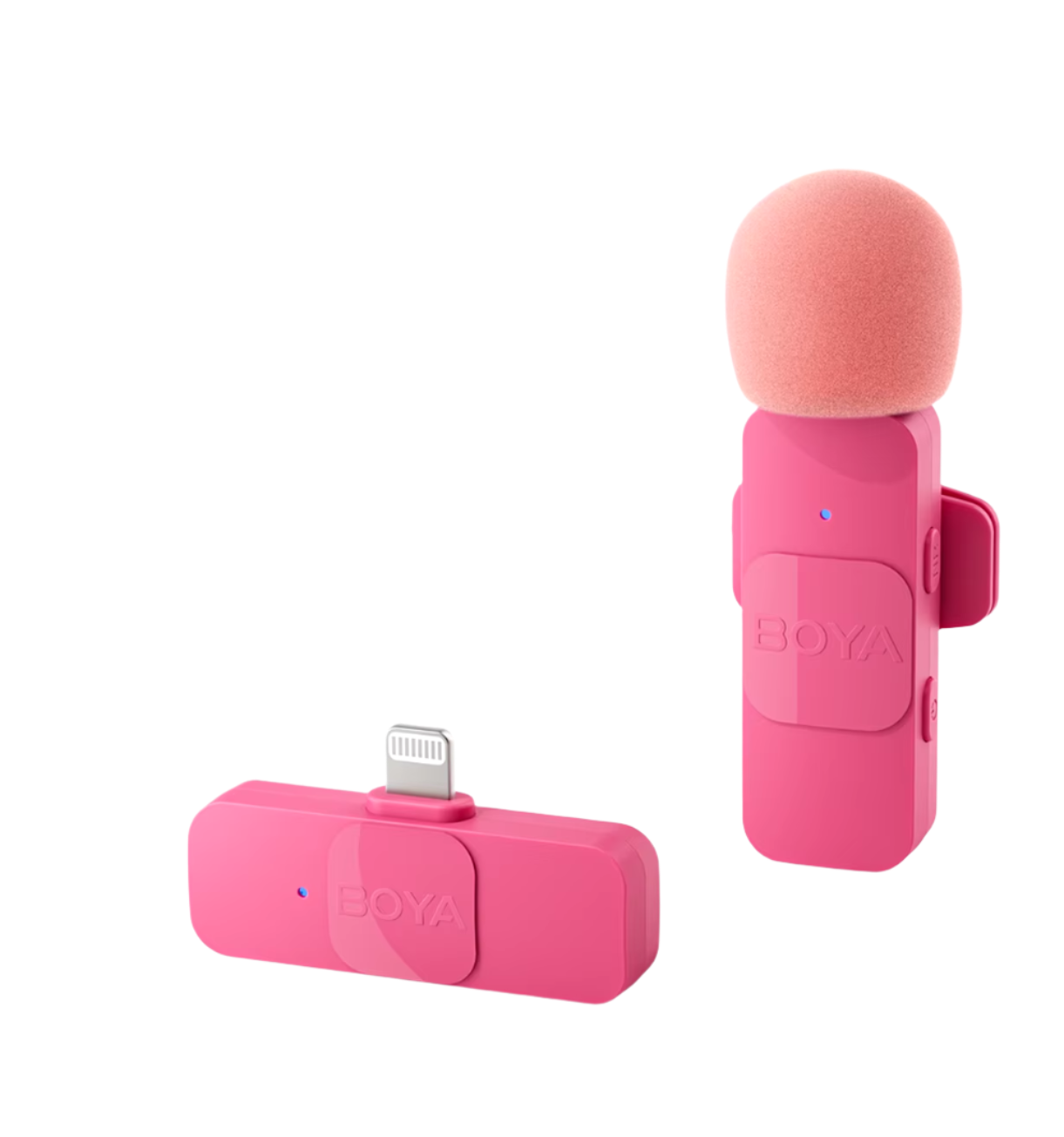

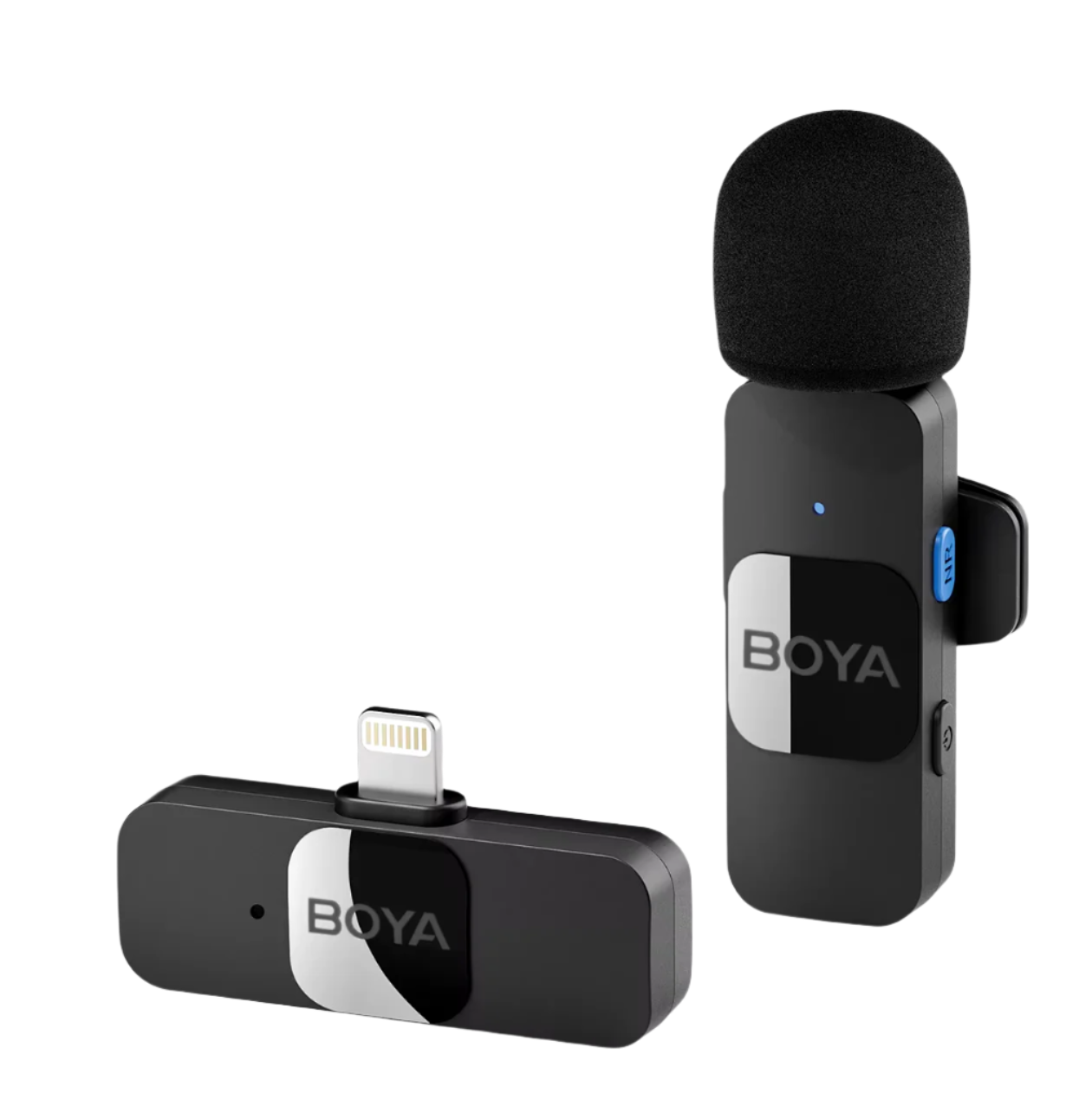

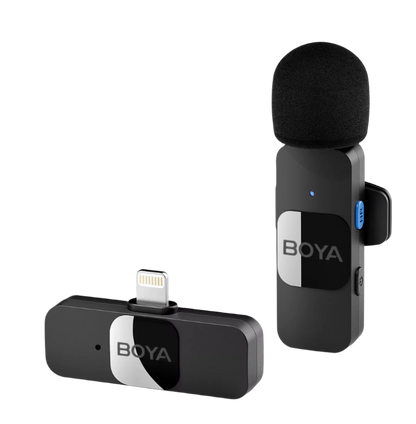

BY-V1 - Is compatible with most With an MFi Certified Lightning output, the BY-V1 is designed for Apple iOS devices, and it comes with 1 transmitter and 1 receiver.

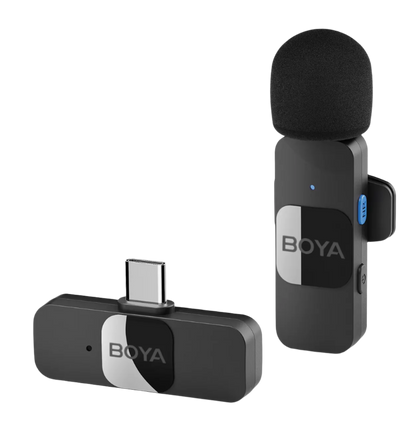

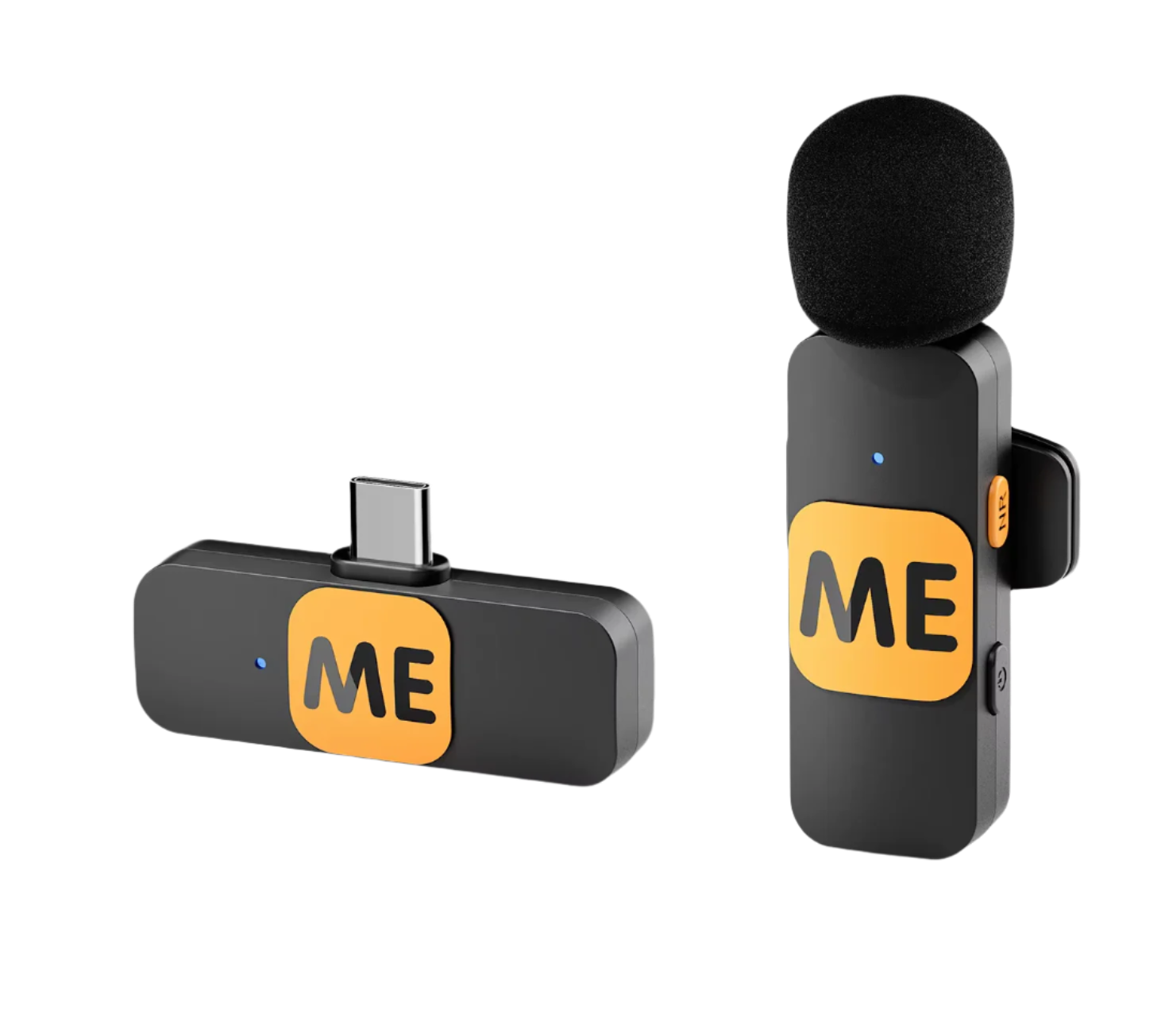

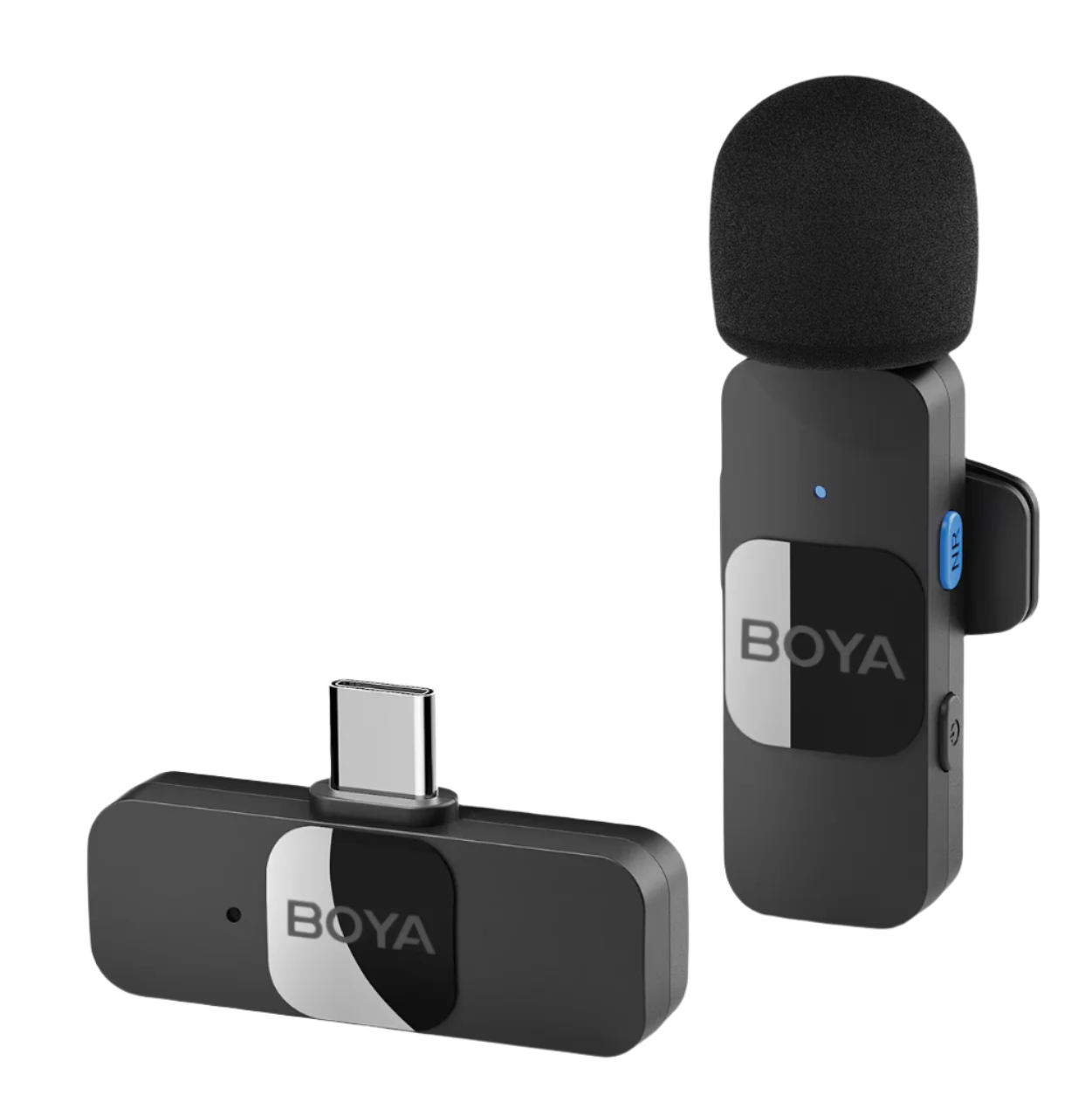

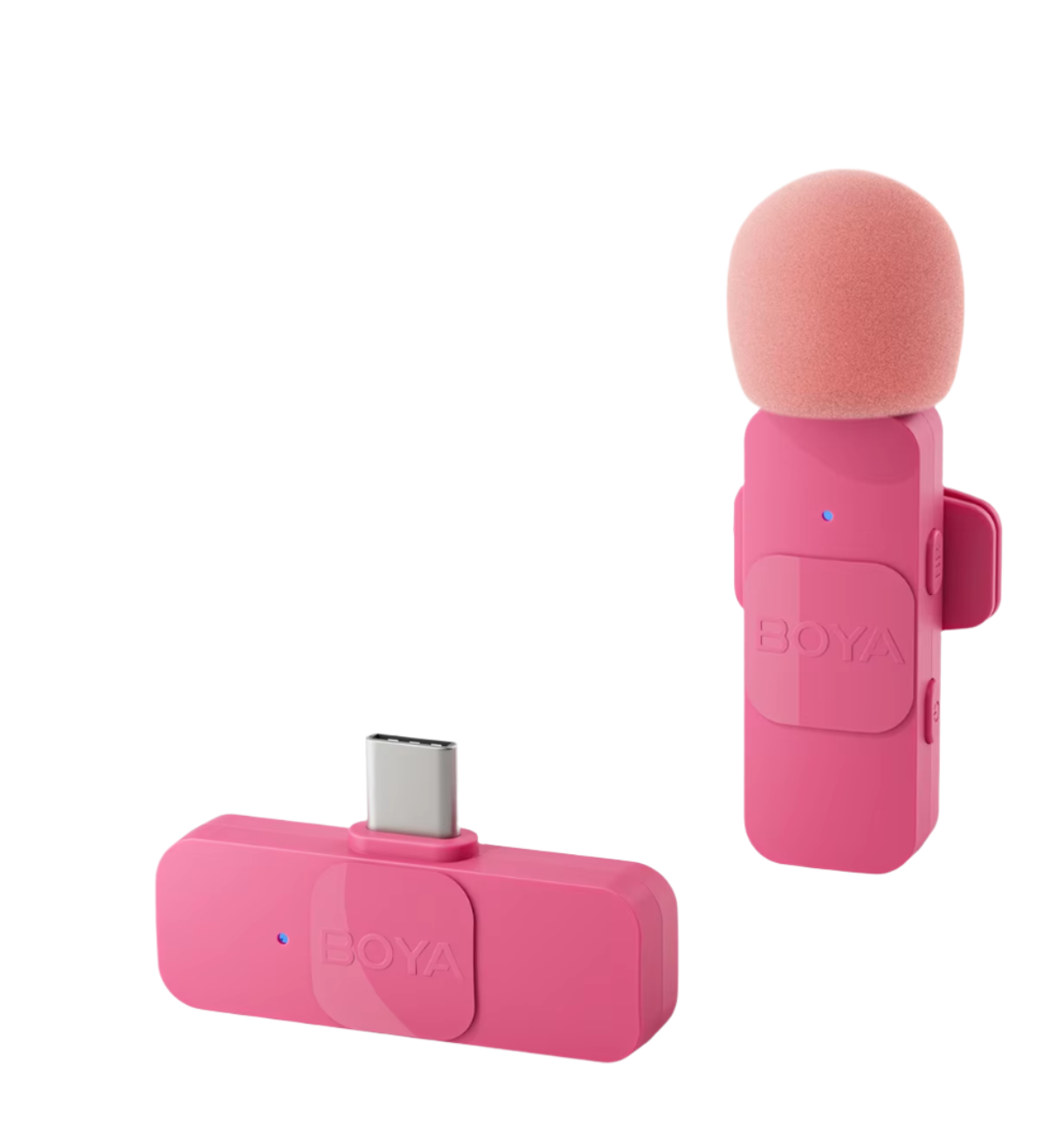

BY-V10 - Is compatible with most Android devices with USB-C ports, including smartphones and tablets. It has 1 transmitter and 1 receiver.

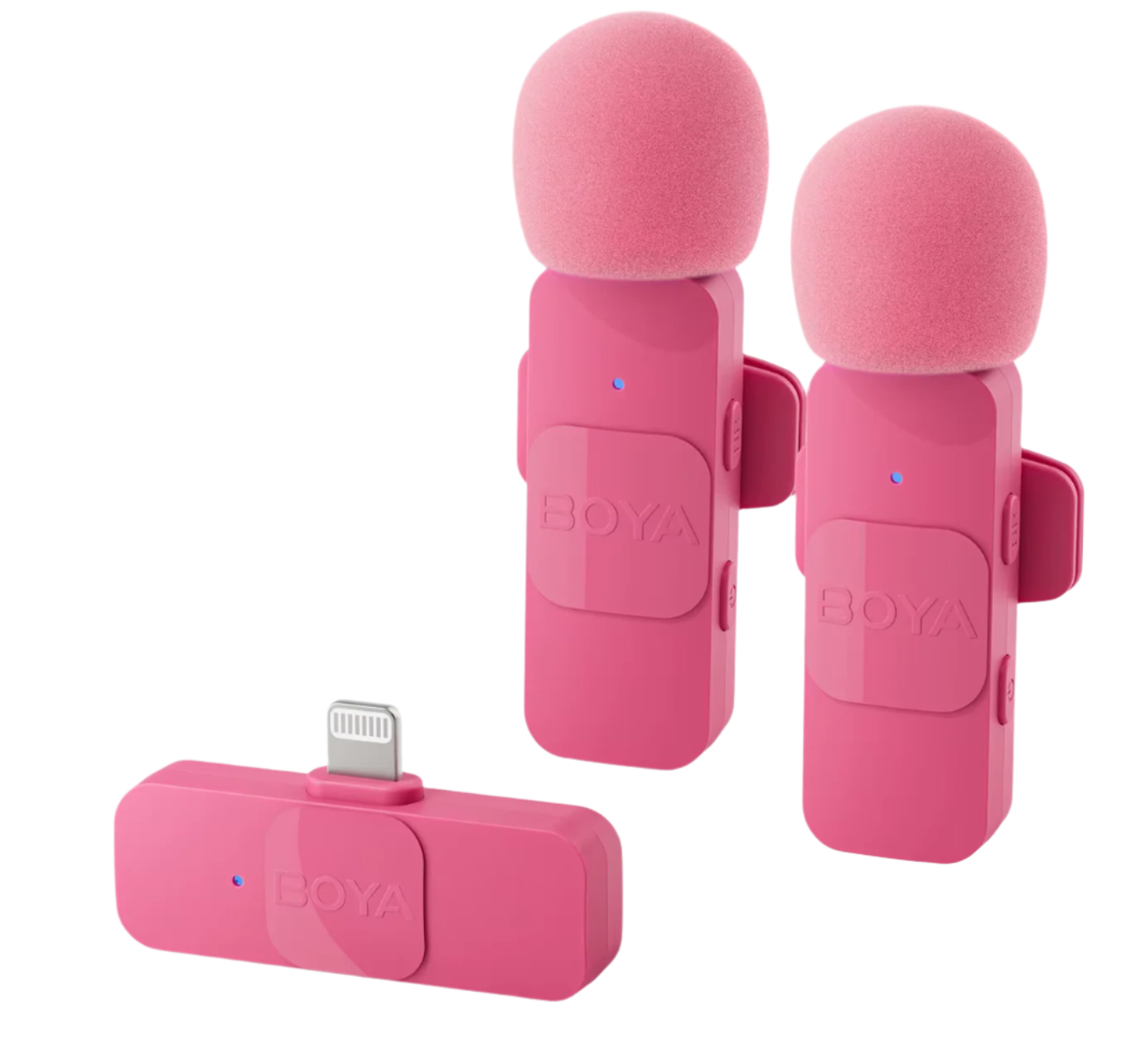

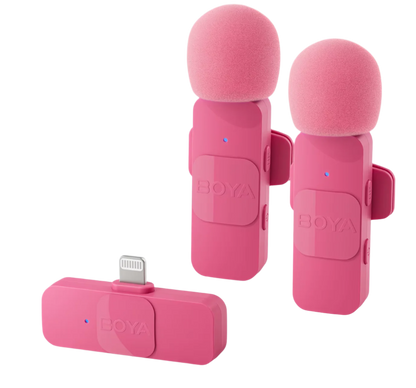

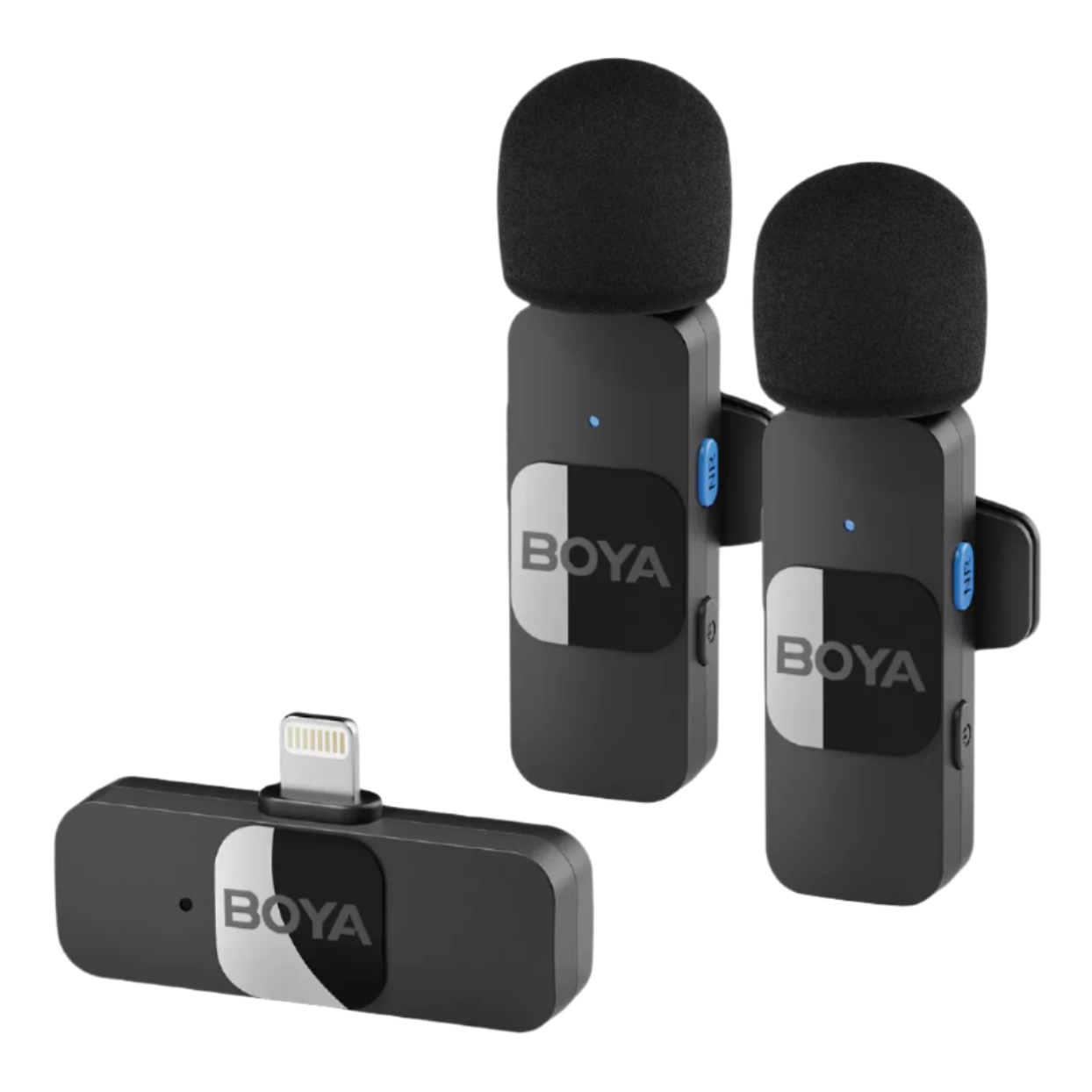

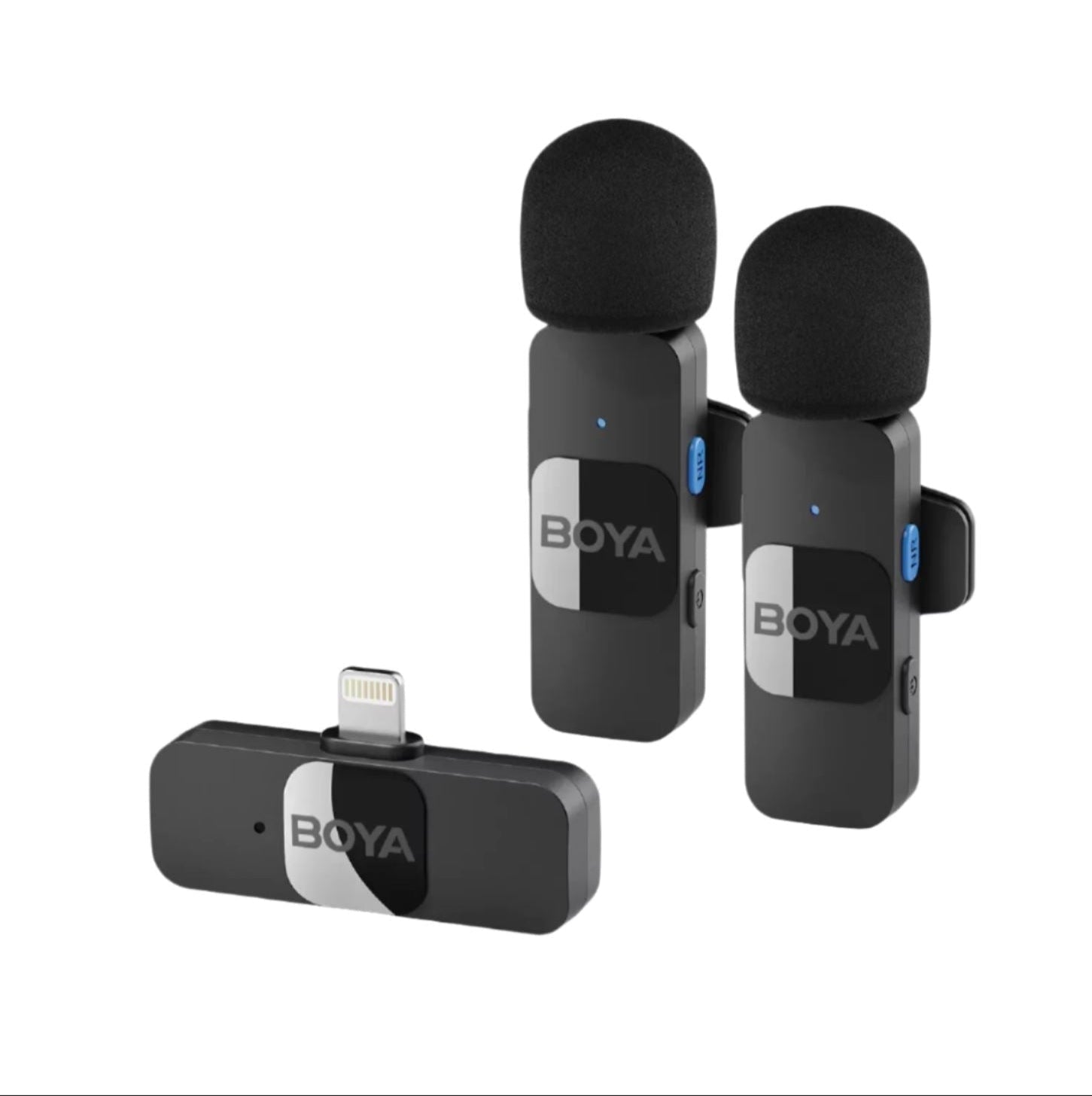

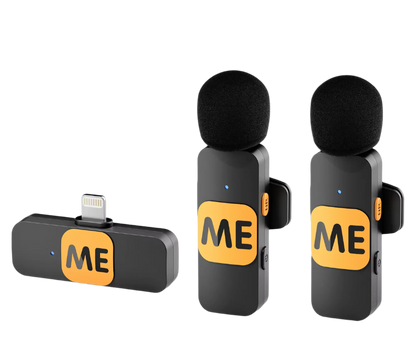

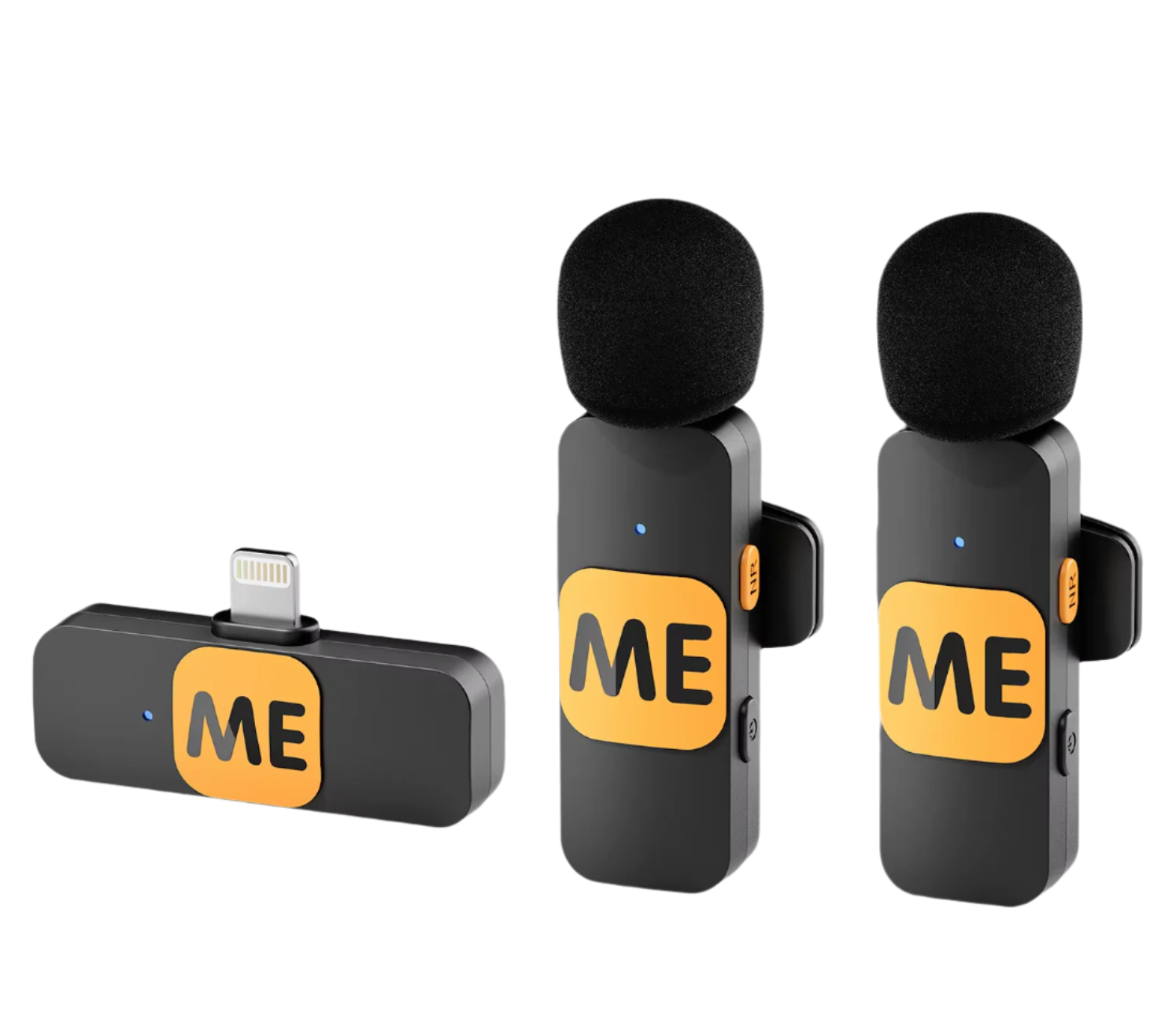

BY-V2 - With an MFi Certified Lightning output, the BY-V2 is designed for Apple iOS devices. Including the 2 transmitters, it can record two sound sources at the same time.

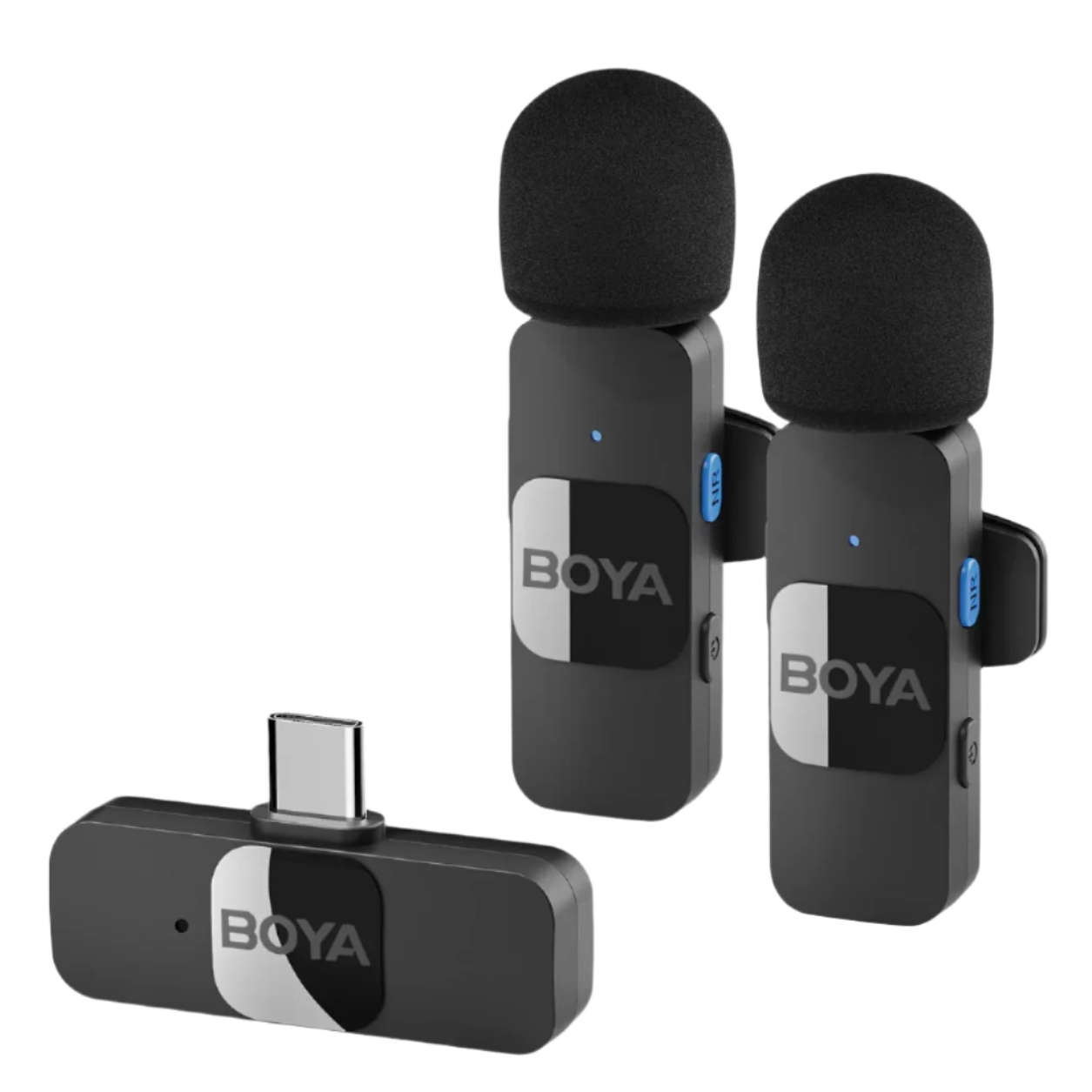

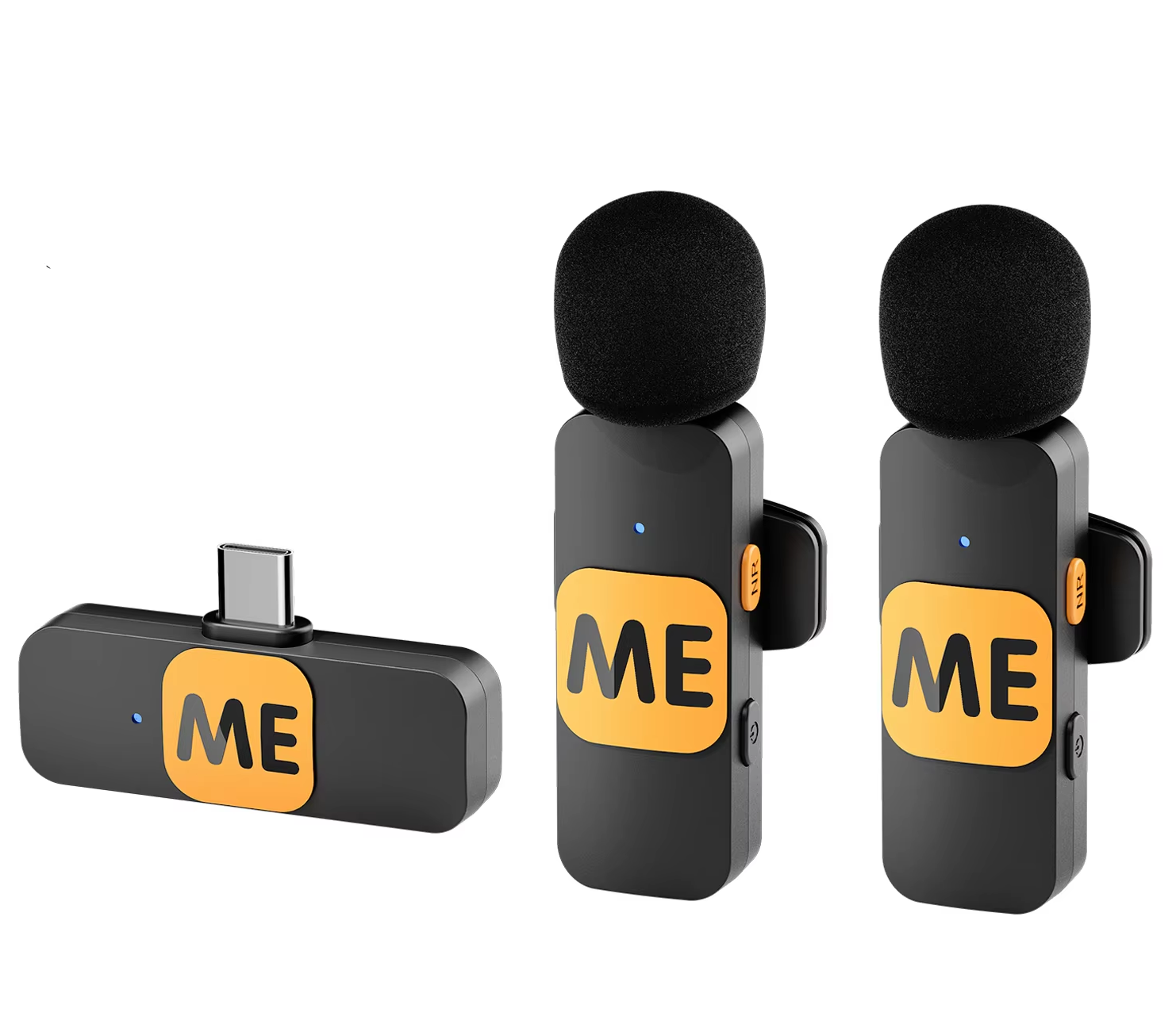

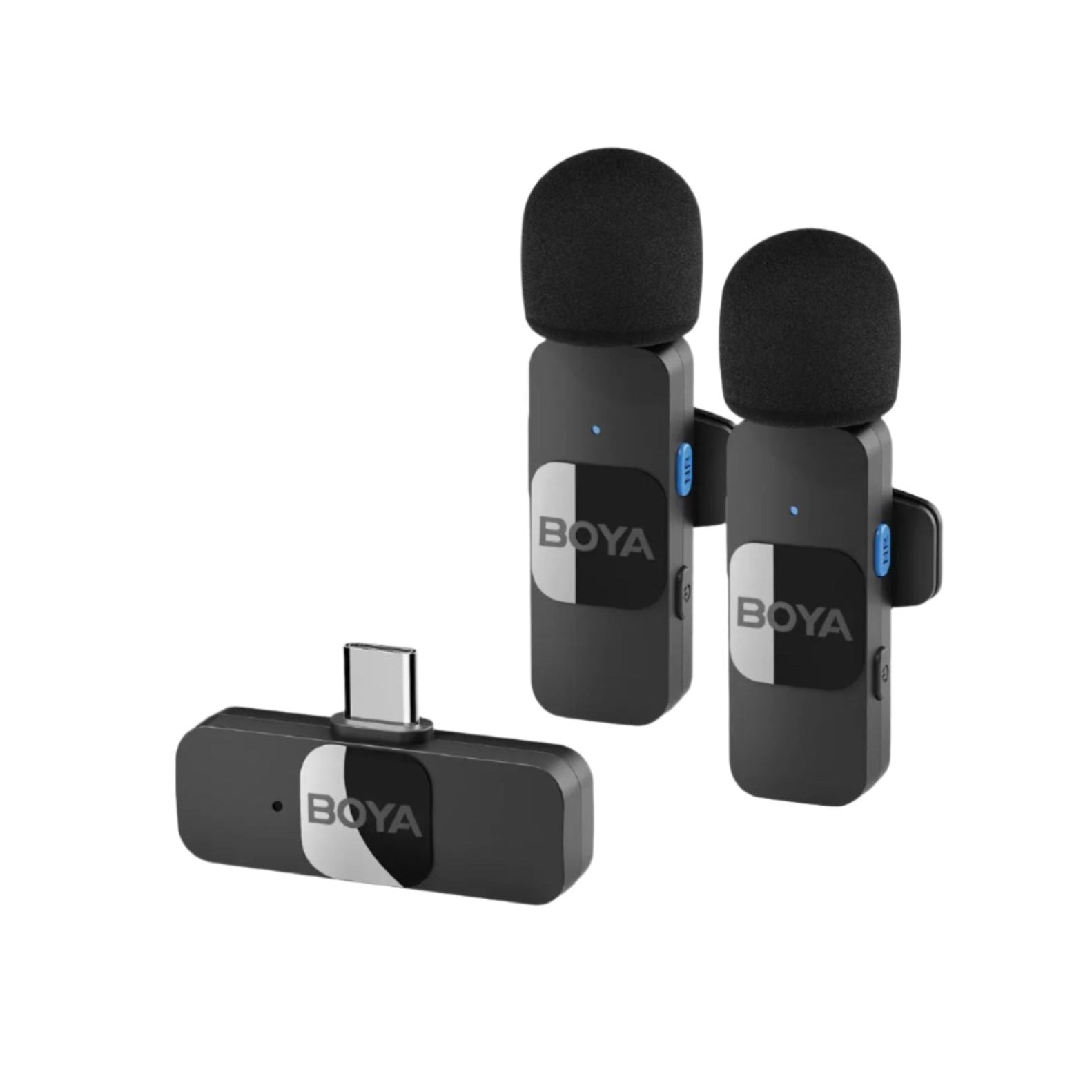

The BY-V20 - Is compatible with most devices with a USB-C port including Android smartphones and tablets. Including the 2 transmitters, BY-V20 can record two sound sources at the same time.

TIPS

BY-V10/BY-V20 belongs to the Type-c interface and is a microphone, which can support Dji OSMO Action 2/Dji OSMO Action 3 cameras, and can be used directly.

(Does not support DJI OSMO Action 1)

For iPhone15 series mobile phones, please choose the microphone with BY-V10 or BY-V20 or Mic-S10 or Mic-S20 Type-c interface

Transmission Type: 2.4GHz
Poplar Pattern: Omnidirectional
Frequency Response: 20Hz-16kHz
Signal-to-noise Ratio: 80dB
Sensitivity: -42dB

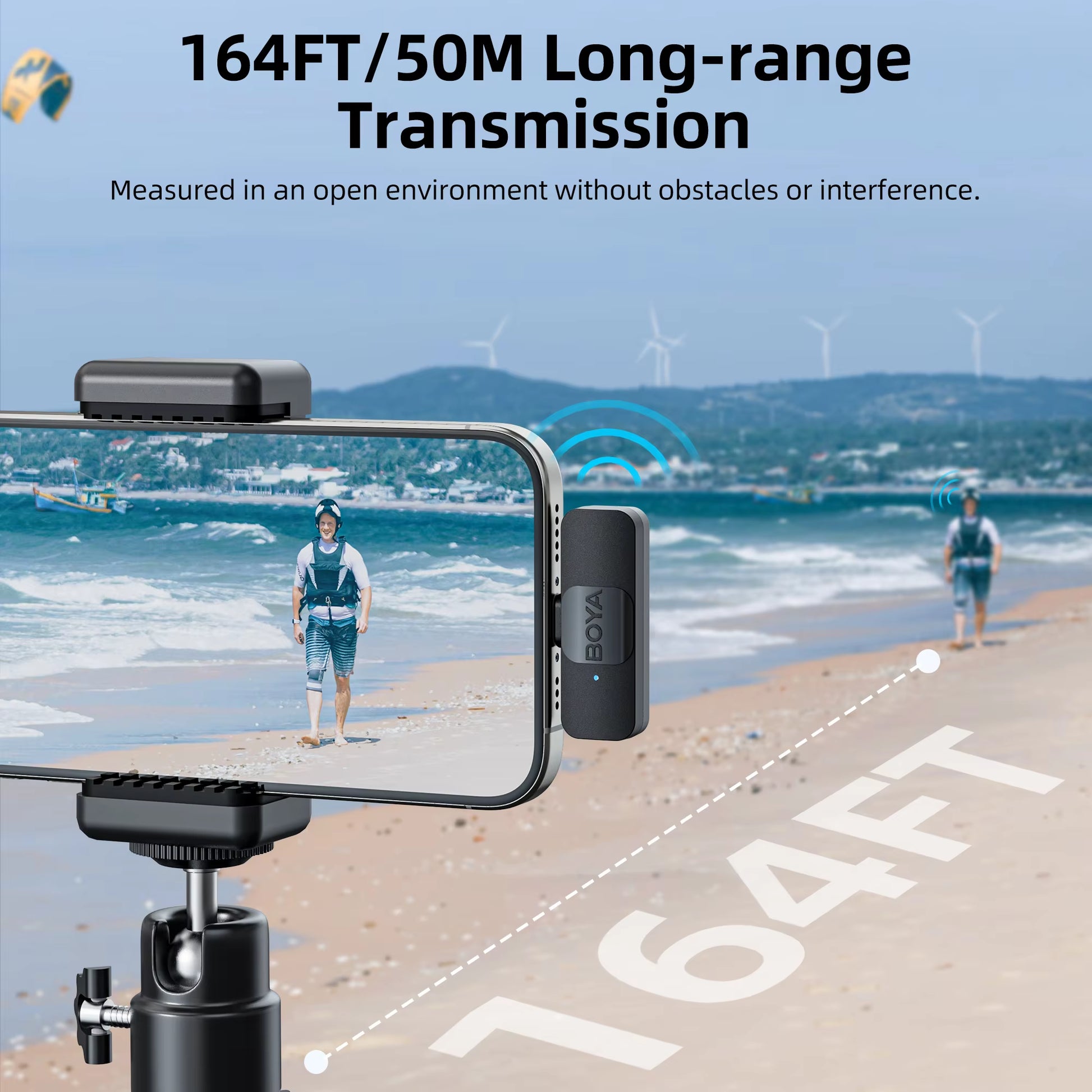

Operating Range: 50m (without obstacles
RF Output Power: 6dBm
Charging Port: USB-C

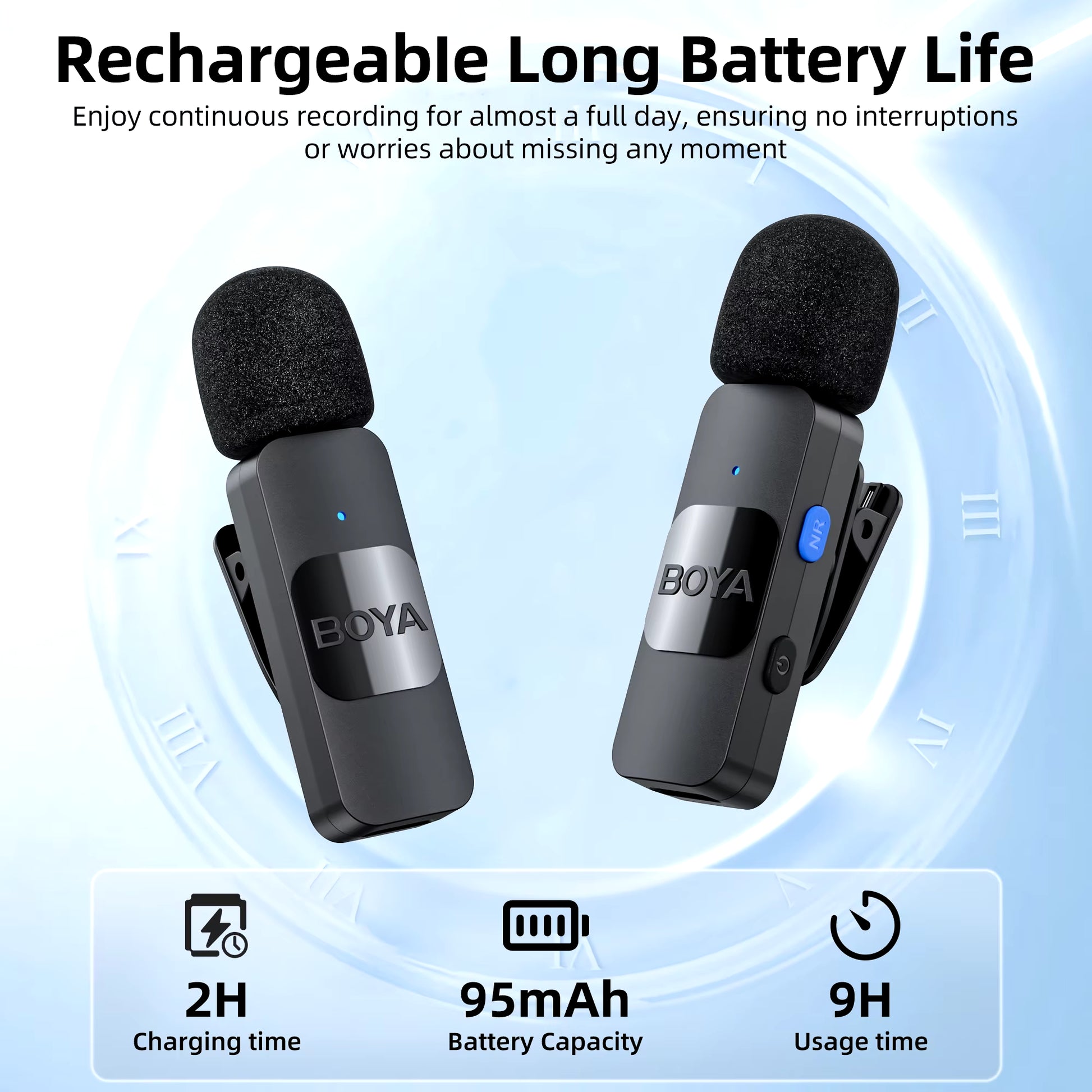

Transmitter's Battery Capacity: 95mAh
Transmitter's Charging Time: Approx 2 hours
Transmitter's Battery Life: Approx.9 hours

Receiver's Power Requirement: Supplied by External Devices

BY-V1-TX/ BY-V2-TX: 9.5g
BY-V1-RX/ BY-V2-RX: 6g
BY-V10-RX/ BY-V20-RX: 6g
BY-V1-TX/ BY-V2-TX: 52.22×25.23×19.75mm
BY-V1-RX/ BY-V2-RX: 43.92×23.5×9.3mm
BY-V10-RX/ BY-V20-RX: 43.92×24.7×9.3mm

For the kit of BY-V1/ BY-V10
1.Press and hold the power button for 2 seconds to turn on the BY-V1-TX transmitter.
2. Plug the BY-V1-RX into an iOS Lightning device or the BY-V10-RX into a USB-C device.
3. Transmitter and receiver will be suCCessfully paired within 10 seconds
4. You are ready to record

For the kit of BY-V2/ BY-V20
1.Press and hold the power button for 2 seconds to turn on two BY-V2-TX transmitters
2. Plug the BY-V2-RX into an iOS Lightning device or the BY-V20-RX into a USB-C device.
3.Transmitters and receiver will be successfully paired within 10 seconds
4. You are ready to record

BY-V1:

• 1 X BY-V1-TXTransmitter
• 1 X BY-V1-RX Receiver X
• 1 X USB-C Charging Cable
• 1 X Foam Windscreen

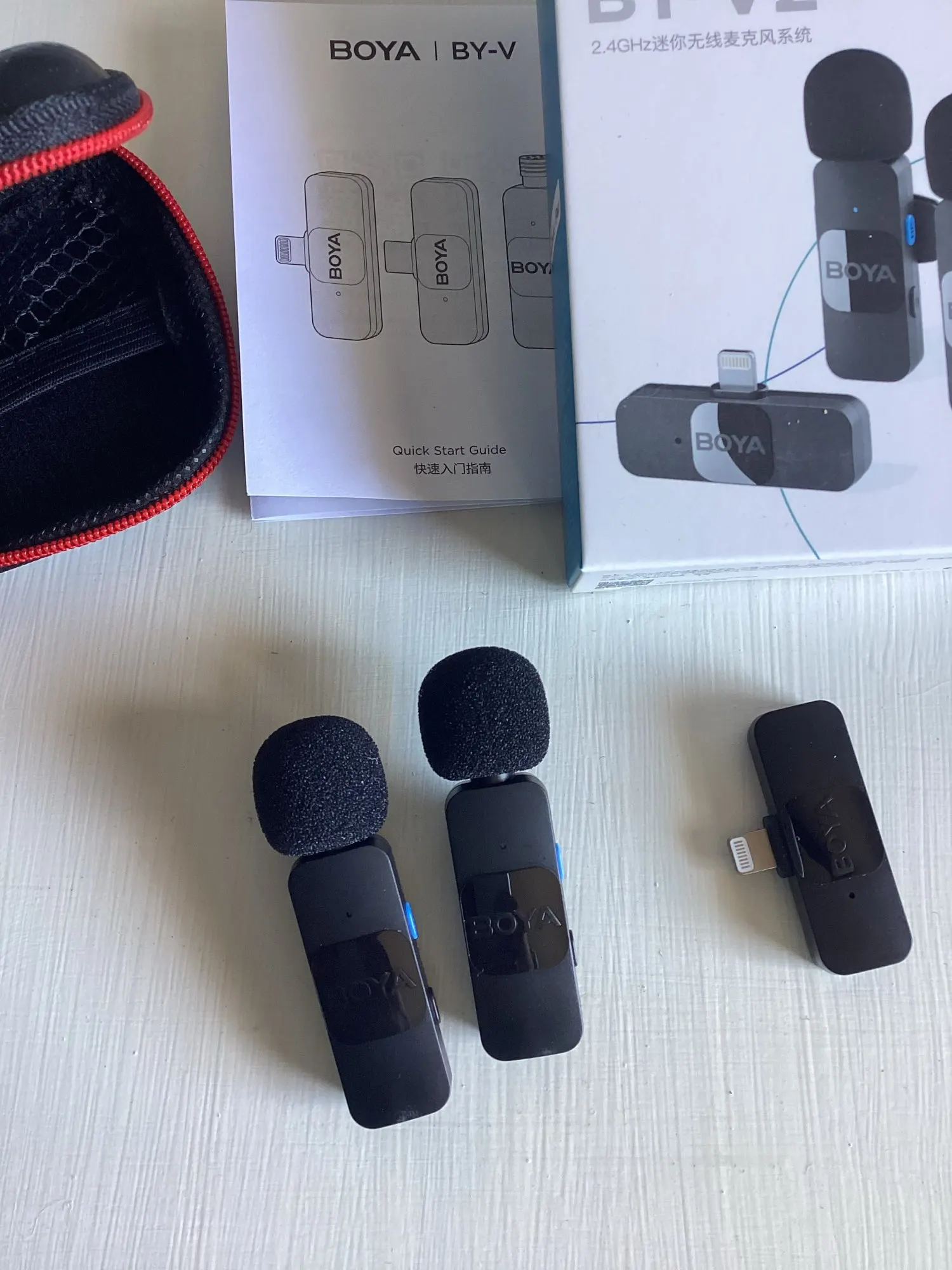

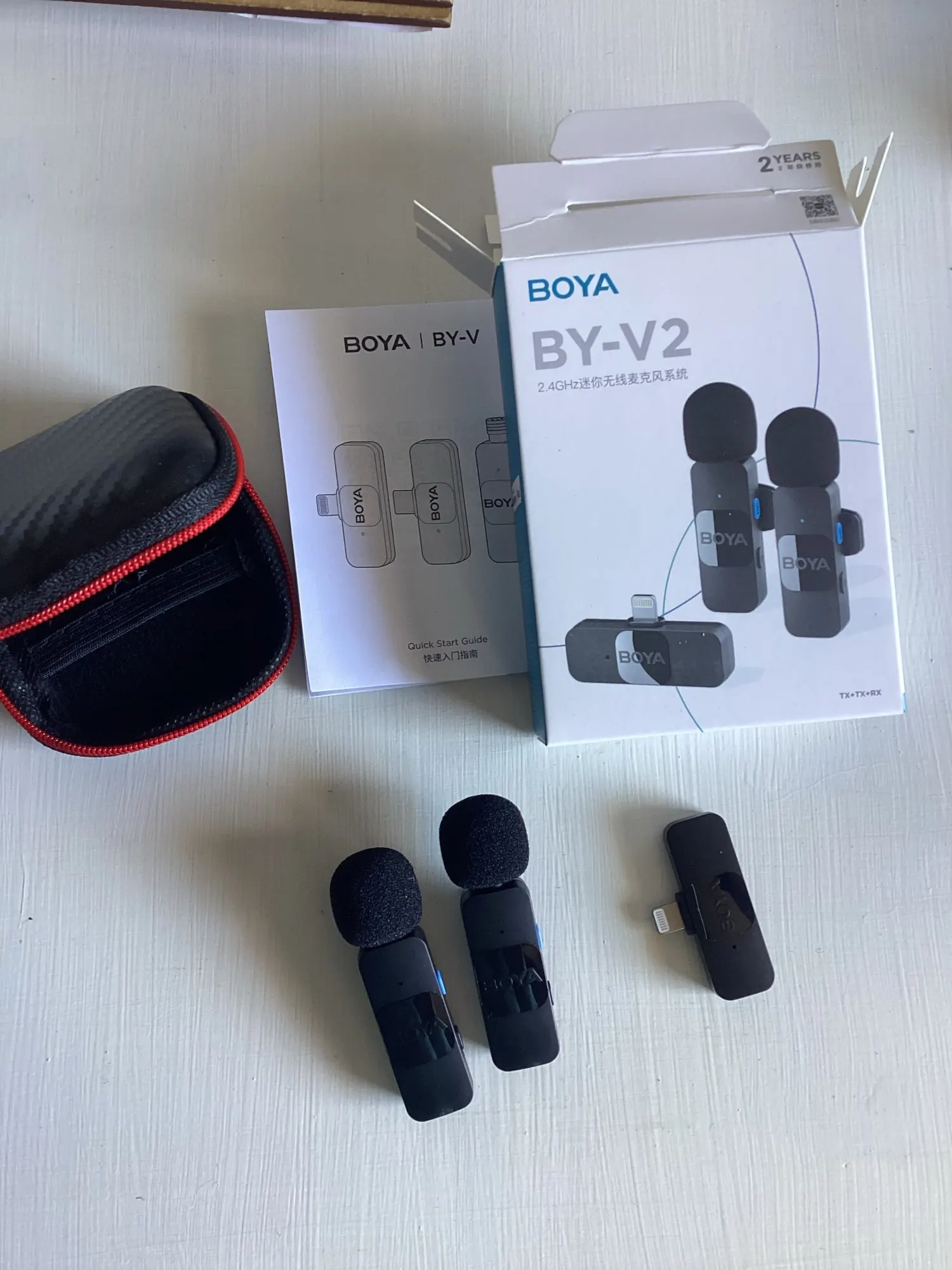

BY-V2

• 2 X BY-V2-TXTransmitter
• 1 X BY-V2-RX Receiver
• 2 X USB-C Charging Cable
• 2 X Foam Windscreen

BY-V10

• 1 X BY-V1-TXTransmitter
• 1 X BY-V10-RX Receiver
• 1 X USB-C Charging Cable
• 1 X Foam Windscreen

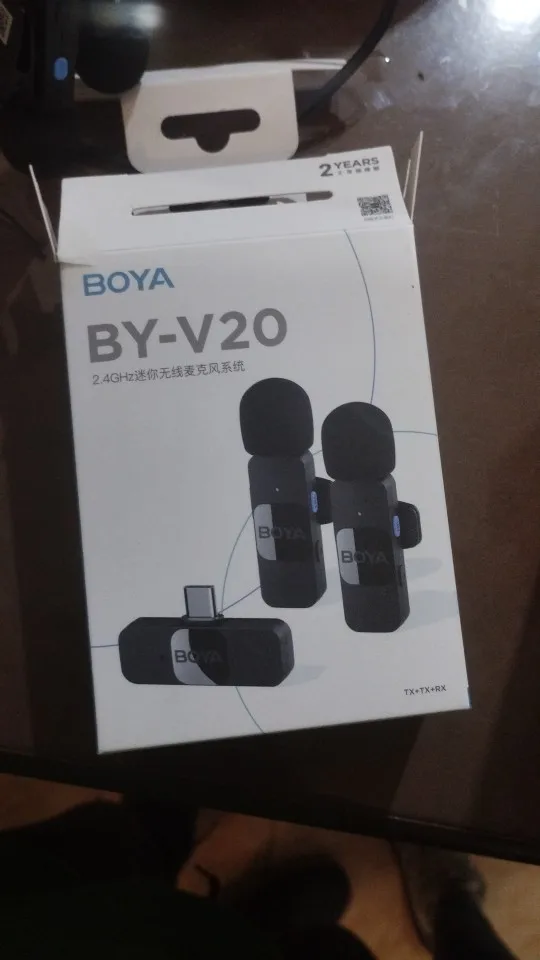

BY-V20

• 2 X BY-V2-TX Transmitter
• 1 X BY-V20-RX Receiver
• 2 X USB-C Charging Cable
• 2 X Foam Windscreen
