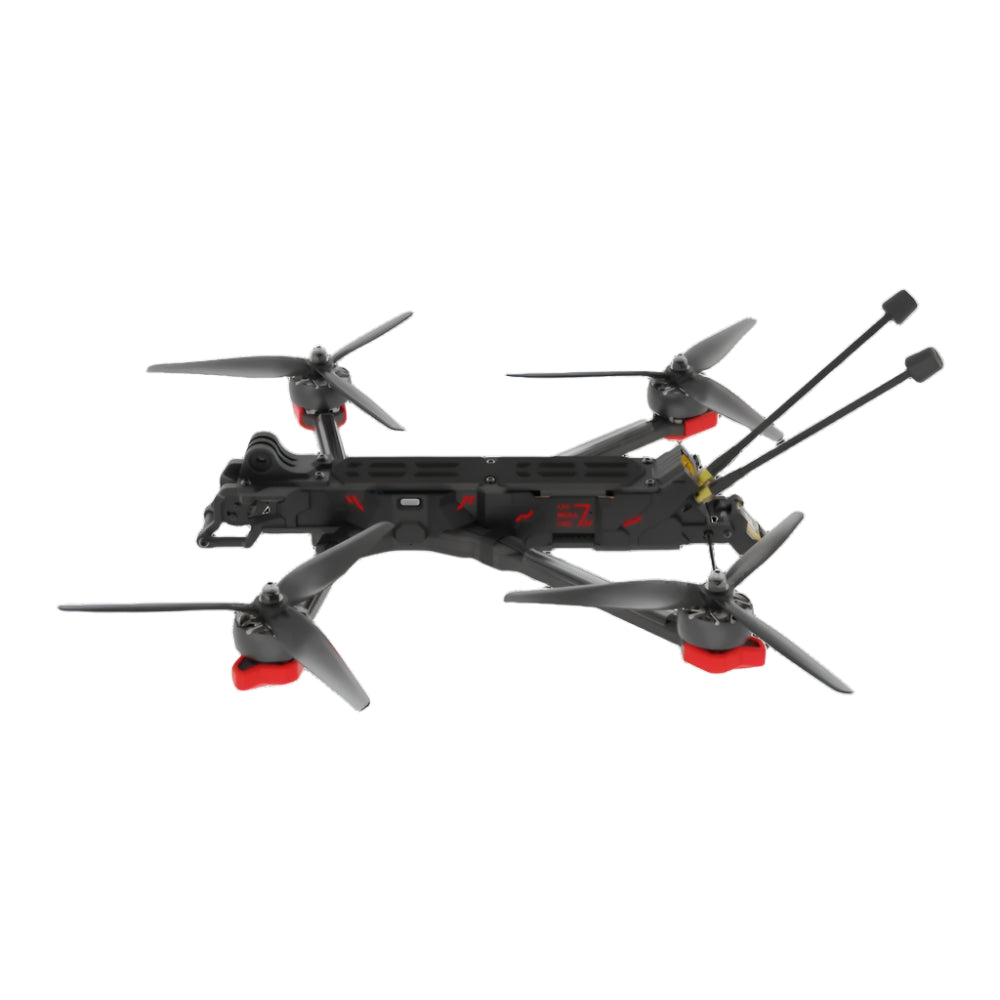

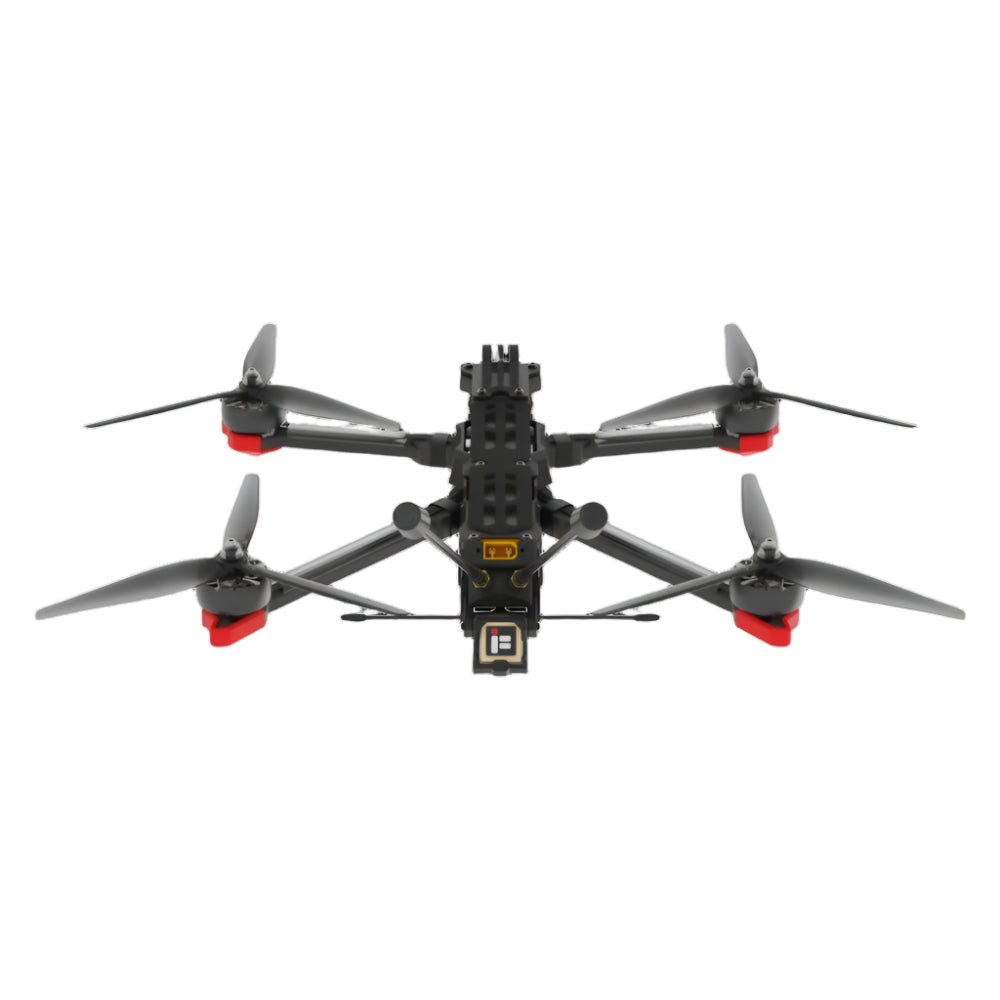

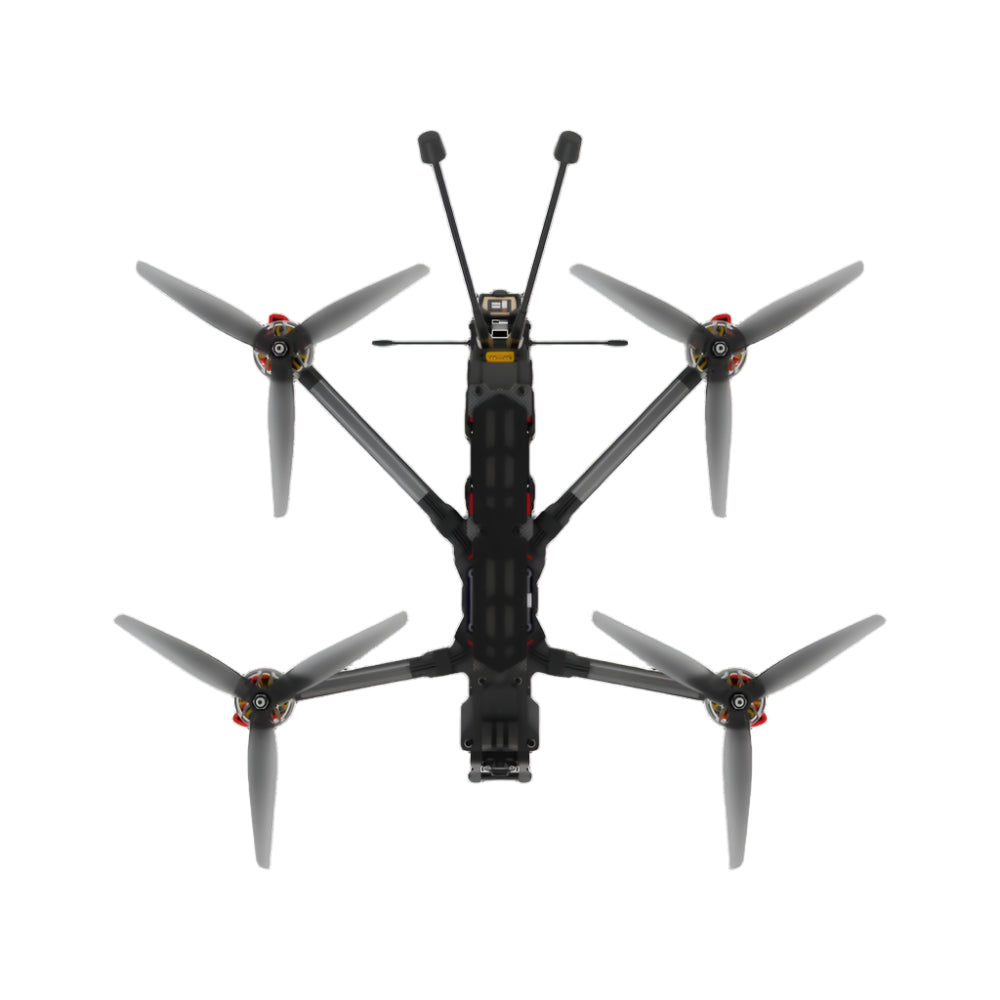

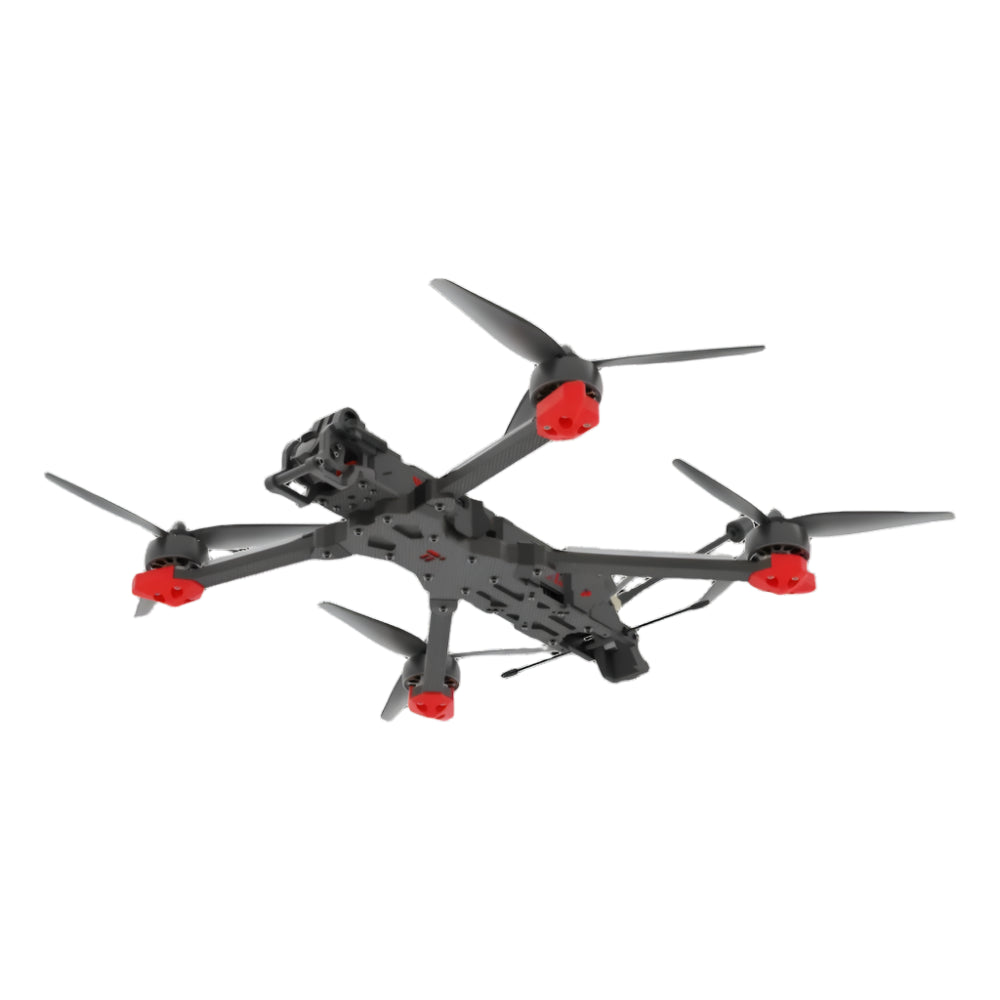

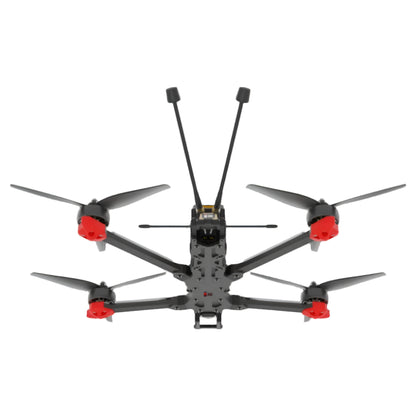

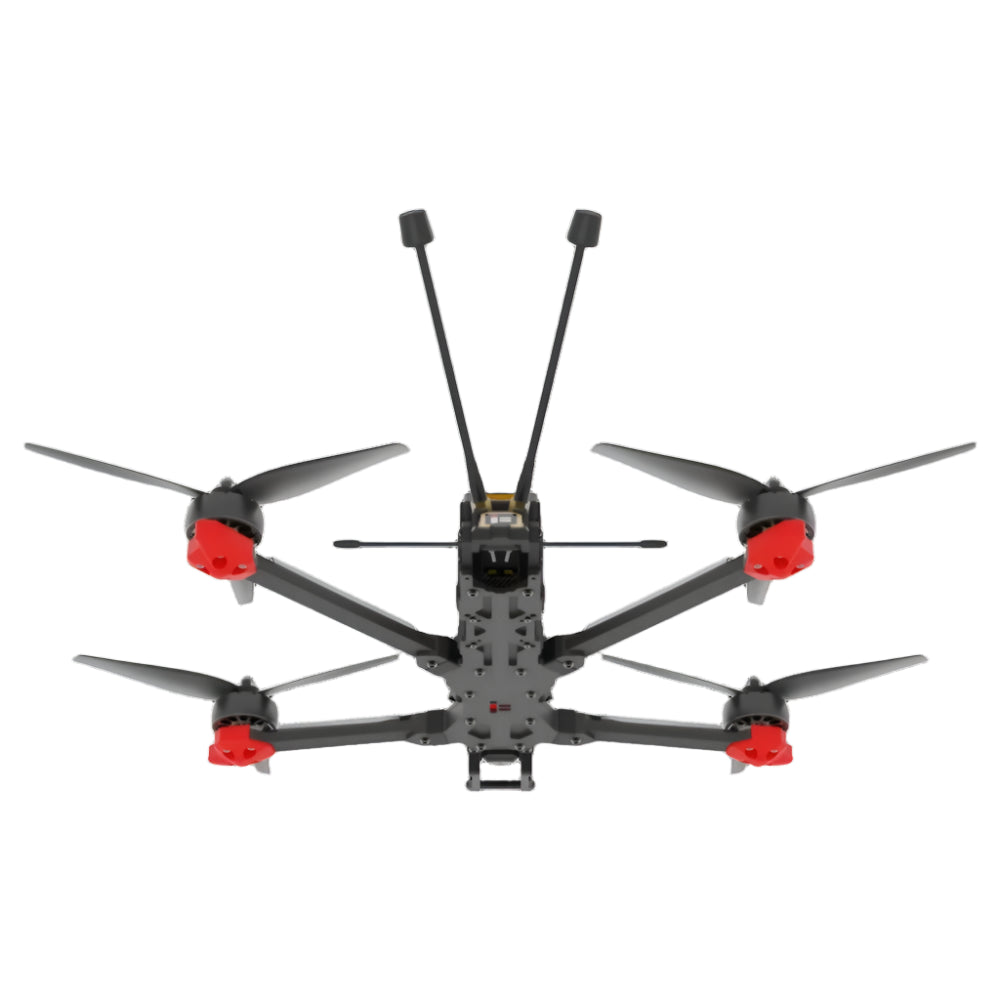

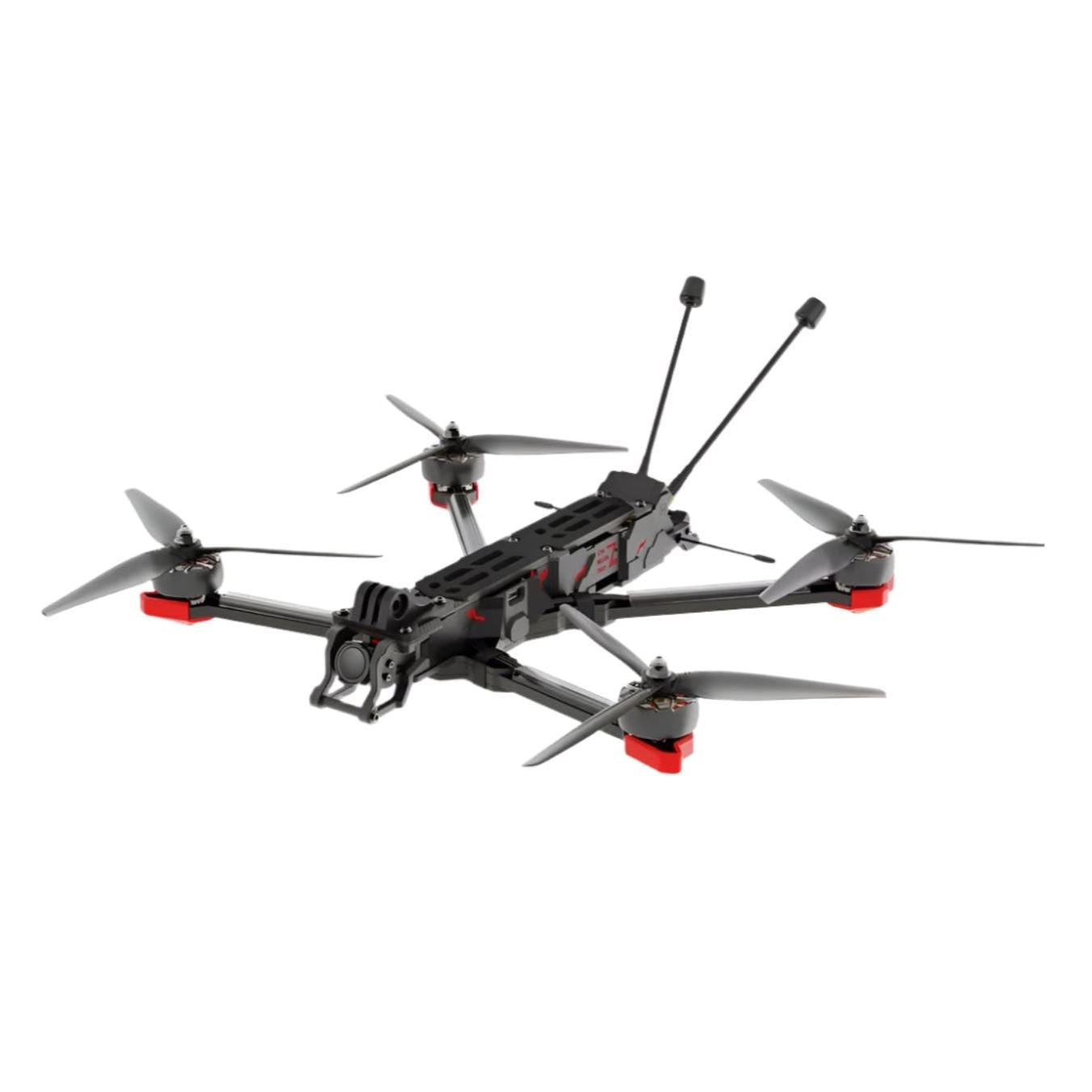

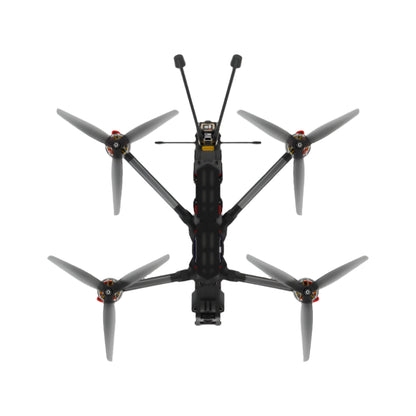

Redefining Long-Range FPV: Chimera7 Pro V2 6S HD
Take your FPV adventures to new heights with the Chimera7 Pro V2, a powerhouse built for long-range exploration. Featuring cutting-edge DJI O3 HD visuals and advanced iFlight engineering, this drone is the ultimate companion for pilots seeking performance, durability, and breathtaking visuals.
Key Features
1. Long-Range Performance Redefined
The Chimera7 Pro V2 is engineered for endurance and stability. With its efficient 7.5-inch propellers, XING2 2809 motors, and robust frame, it delivers unmatched control and precision for extended flights over vast distances. Whether you're cruising or pushing the limits, this drone is ready for the journey.
2. Stunning DJI O3 HD Air Unit Integration
Enjoy ultra-low latency HD video transmission with up to a 10 km range, delivering crisp 4K stabilized visuals with a 155° ultra-wide angle. Capture every detail of your journey with exceptional clarity and smoothness, even in challenging environments.
3. Optimized Frame and Electronics Protection
The newly designed frame minimizes dirt and debris buildup, protecting critical electronics like the flight controller and ESC from contamination. Illuminated side panels and TPU 360-degree protection enhance durability and style while maintaining efficient airflow for optimal cooling.
4. Advanced XING2 Motors
The upgraded XING2 2809 motors deliver smooth, powerful performance with enhanced durability. Featuring unibell construction, a titanium alloy shaft, N52H curved magnets, and high-grade NSK bearings, these motors are built for precision and reliability in any flight condition.
5. GPS-Enabled Safety Features
Pre-installed GPS ensures safe navigation with Betaflight GPS Rescue mode ready for configuration. The custom 100mm LR antenna maximizes signal strength, ensuring reliable performance even at extreme distances.
6. Anti-Spark Battery Plug with Heatsink Innovation
The integrated XT60 anti-spark connector prevents voltage surges and extends the lifespan of your electronics. Additionally, the custom CNC heatsink enhances cooling for the DJI O3 Air Unit, ensuring stable performance during high-power flights.
Specifications
-
Product Name: Chimera7 Pro V2 6S HD
-
Flight Controller: BLITZ F722
-
ESC: BLITZ E55 4-IN-1 2-6S 55A ESC
-
Video Transmission: DJI O3 Air Unit
-
Frame Wheelbase: 327mm
-
Motors: XING2 2809
-
Propellers: 7.5x3.7x3
-
Weight: 695g (approx. 750g takeoff)
-
Max Speed: 140km/h
-
GNSS: GPS+SBAS+Galileo+QZSS+Glonass
-
Operating Temperature: -10°C to 40°C (14°F to 104°F)
-
Max Video Transmission Range: 10km (FCC), 2km (CE), 6km (SRRC)
What’s in the Box
- 1 x Chimera7 Pro V2 6S HD
- 2 x Battery Pads
- 2 x 7.5-inch Propeller Pairs
- 2 x Battery Straps
- 1 x Screw Bag
Important Notes
-
Pre-Tuned for Optimal Flight:
Your Chimera7 Pro V2 arrives with a pre-applied PID and filter tuning for an exceptional flying experience right out of the box. Angle mode is enabled by default for beginners.
-
User Responsibility:
iFlight products are strictly for civilian use. Any use related to military or terrorist activities is prohibited. Non-compliance with applicable laws may result in immediate suspension or termination of support.
Take your FPV flights further and higher with the Chimera7 Pro V2 6S HD, the ultimate choice for long-range adventures and unparalleled performance.
