IFLIGHT Nazgul Evoque F5 BLITZ MINI F7 5" FPV

Nazgul Evoque F5 Analog – Performance Meets Precision

Experience the Ultimate Fusion of Power, Protection, and Performance

The Nazgul Evoque F5 Analog redefines the limits of freestyle drones, blending cutting-edge technology with a robust and elegant design. Engineered with passion and precision, this drone is designed for both beginners and experienced pilots, offering unrivaled performance from the very first flight.

Key Features

1. Fully Enclosed Electronics for Ultimate Protection
Say goodbye to grass, dirt, and debris invading your flight stack. The lightweight side panels shield the internal components, keeping your drone clean and operational in any environment.

2. Integrated XT60 Battery Plug for Safety
Never worry about dangling cables again! The secured XT60 battery plug is conveniently mounted at the back, ensuring cables are kept clear of props, reducing the risk of mid-flight damage.

3. High-Performance BLITZ Mini F7 Flight Stack
Equipped with the BLITZ Mini F7 flight controller and BLITZ E55S ESC, this drone delivers exceptional power and reliability. Features include a modern USB Type-C port, 16MB BlackBox storage, and 5 UARTs for versatile expansion options.

4. XING-E Pro Motors for Superior Efficiency
The XING-E Pro 2207 motors provide unmatched durability and responsiveness, thanks to their aluminum unibell design, NSK bearings, and optimized magnetic flux.

5. 360-Degree Illumination for Style and Functionality
Stand out day or night with integrated LEDs on the arms and side panels. Bottom LEDs indicate battery voltage at a glance, preventing accidental lift-off with a low charge.

6. SucceX Force 600mW VTX for Reliable Analog Transmission
The 600mW Mini VTX offers stable, long-range video transmission with built-in telemetry and interference filtering. Paired with an MMCX antenna connector, it ensures secure and dependable performance.

Specifications

Frame Design:

• Dimensions: 166x139mm
• Geometry: Squashed-X or DeadCat available
• Arm Thickness: 6mm
• Bottom Plate Thickness: 2.5mm

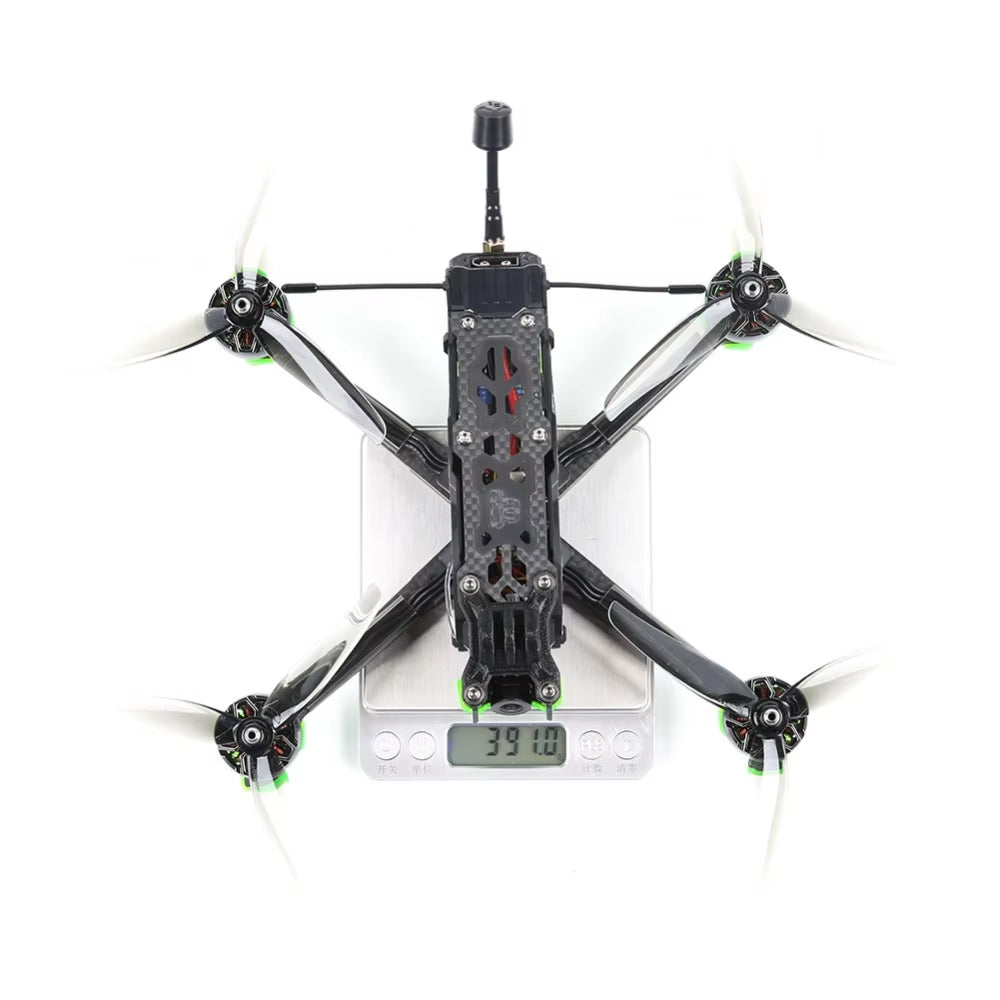

• Weight: 392.6g (without battery or GoPro mount)

Flight Stack:

• FC: BLITZ Mini F7 (STM32 F722, 16MB BlackBox, 5 UARTs)
• ESC: BLITZ Mini E55S 4-in-1 (55A continuous, 60A burst)

Motors and Propellers:

• Motors: XING-E Pro 2207 (4S/6S options)
• Props: Nazgul F5

VTX:

• SucceX Mini Force 600mW
• Power Levels: PIT/25/200/400/600mW
• Antenna Connector: MMCX

What’s Included

• 1 x Nazgul Evoque F5 Analog (Squashed-X or DeadCat)
• 4 x Nazgul F5 Propellers
• 2 x Battery Straps
• 2 x Battery Pads
• 1 x Screw Bag

Innovations and Updates

• August 2021: Upgraded foam inner packaging to blister material for enhanced protection.
• November 2021: Upgraded flight stack to BLITZ Mini F7 + BLITZ E55S ESC, boosting performance and reliability.

Unleash the Power of the Nazgul Evoque F5 Analog
From its protective design to its high-performance components, the Nazgul Evoque F5 Analog is the perfect companion for freestyle pilots seeking durability, safety, and next-level flight dynamics. Whether you’re just starting out or pushing your skills to the limit, this drone is engineered to deliver every time.
